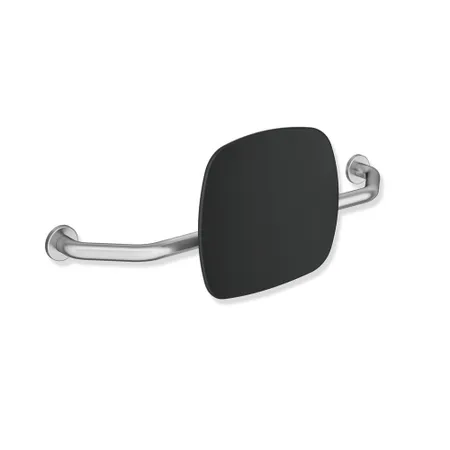

HEWI Backrest


805.51.917


Available from 1st December 2020


Product information

  • back rest with rods and fixing rosettes on both sides
  • user-friendly wall distance of 230 mm
  • serves to support the back on the WC
  • wall mounting with rosettes
  • 650 to 750 mm wide, 230 mm deep, back rest 334 mm high and 370 mm wide, rod diameter 33 mm, rosette diameter 70 mm
  • back rest made of synthetic material in HEWI colours 98 (signal white), 92 (anthracite grey) and 90 (jet black)- connection made of high-quality stainless steel, surface satin finished

Technical specifications

Material and colour
Surface/Colors
Connection
XA
Backrest
98
92
90

Downloads

HEWI colour chart
BIM
2D drawing
Product Data Sheet
Tender specifications
Download everything
