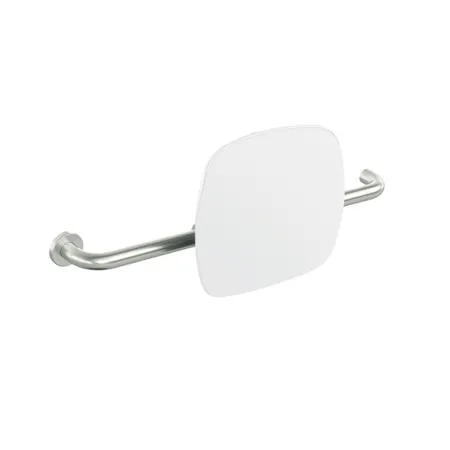

HEWI Backrest


Available from 1st December 2020

Product information

  • back rest with right-angled rods and fixing rosettes attached on both sides
  • serves to support the back on the WC
  • left-hand version
  • one-sided installation on the wall with rosettes (right)
  • one-sided installation on folding support handles or wall support handles with wall plate (left)
  • adjustable on site
  • 650 to 750 mm wide, 150 mm deep, back rest 334 mm high and 370 mm wide, rod diameter 33 mm, rosette diameter 70 mm
  • back rest made of synthetic material in HEWI colours 98 (signal white), 92 (anthracite grey) and 90 (jet black)
  • connection made of high-quality stainless steel, surface matt ground
  • meets the requirements according to DIN 18040 and ÖNORM B1600/1601

Technical specifications

Material and colour


HEWI colour chart
2D drawing
Product Data Sheet
Tender specifications
Download everything
