HEWI Grab bar (USA)


801.36BUS130

24" (610 mm)

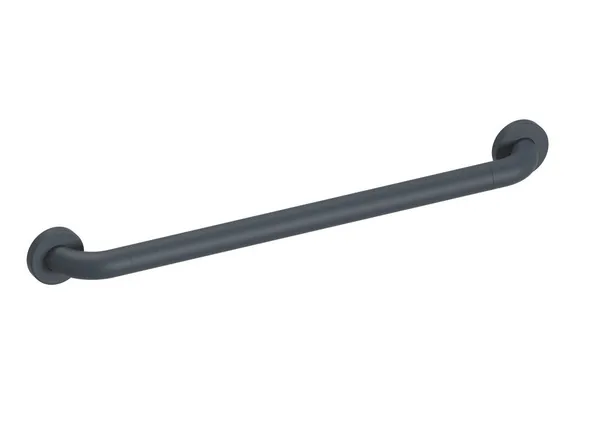

Picture shows item in color 92 (anthracite gray)
Picture shows item in color 95 (stone gray)
Picture shows item in color 97 (light gray)
Picture shows item in color 99 (pure white)
Picture shows item in color 98 (signal white)



Product information

  • rail curved at right-angles at the ends with steel fixing roses
  • for holding onto and as a support
  • with corrosion-protected steel core throughout
  • wall mounting with wall-specific fixing material and roses from HEWI
  • c to c 24 inch (610 mm), 2 3/4 inch (70 mm) deep
  • rail diameter 1 5/16 inch (33 mm), rose diameter 2 3/4 inch (70 mm)
  • suitable for removable hanging seats 801.51US100 and 801.51US110
  • maximum loading capacity 330 lbs (150 kg)
  • made of high-quality matt polyamide in HEWI colours 99 (pure white), 95 (stone grey) and 92 (anthracite grey)
  • meets the requirements of 2010 ADA standards and ICC/ANSI A117.1-2017
  • toilet paper holder upgrade kit 801.50US010 can be retrofitted

Technical specifications

Material and colour
Colors
Polyamide, mat
99
95
92
Alternative colors
Polyamide
99
95
92
90
86
84
33

Certificates

  • ADA compliant

Downloads

HEWI colour chart
Installation instructions (en)
Product Data Sheet
Tender specifications
Download everything
Technical information subject to alteration
