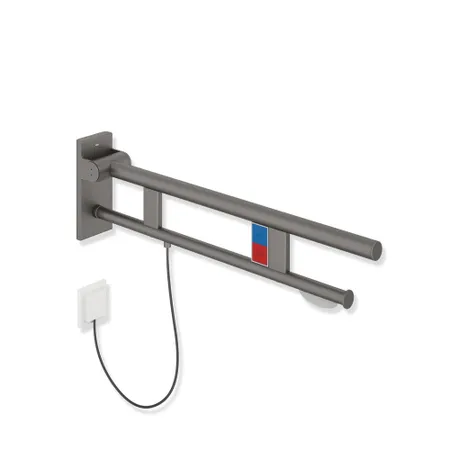

HEWI Hinged support rail Duo


900.50.13560

powder-coated

Picture shows similar item
Picture shows similar item
Picture shows similar item
Picture shows similar item


Product information

  • two parallel, round gripping levels arranged on top of each other
  • with toilet roll holder and flushing mechanism/function buttons (model E)
  • left-hand version
  • can be folded upwards and folded downwards with braked movement
  • blue button (wave symbol) for triggering the toilet flushing mechanism, red button (bell symbol) for triggering a freely definable function. (The function button does not fulfil the requirements for an emergency call according to DIN VDE 0834-1)
  • cable with bare wire ends for wall connection
  • including white cover for flush-mounted box
  • control voltage max. 30 V = SELV, PELV, switching current up to max. 2 A
  • suitable for all standard concealed cisterns with electrical control
  • projection 29 1/2 inch (750 mm), 8 1/4 inch (210 mm) high and 4 inch (101 mm) wide, top grab bar diameter 1 5/16 inch (33.7 mm), bottom grab bar diameter 1 inch (25 mm)
  • load capacity up to 220 lbs (100 kg)
  • made of stainless steel, powder-coated in the HEWI colours DX (matt white), DC (matt black), AY (matt light gray pearl mica) and SC (matt dark gray pearl mica)
  • for mounting with non-corrosive and tested HEWI fixing materials for different wall systems (to be ordered separately)
  • sealing tape for sealing the fixing points is included in the scope of supply
  • floor supports 900.50.02060 and 900.50.02160 for retrofitting
  • CE marking according to Directive 93/42/EEC
  • fulfils the requirements applicable in Belgium (CWATUPE, WVG Vlaanderen) regarding the projection of the hinged support rail at the toilet

Technical specifications

Material and colour
Surfaces
DX
DC
AY
SC
Alternative surfaces
XA
Chr

Certificates

  • CE mark

Downloads

HEWI colour chart
BIM
Installation instructions (de, en, fr, nl, it, es, pl)
Installation and operating instructions (de, en, fr, nl, it, es, pl)
2D drawing
3D drawing
Product Data Sheet
Tender specifications
Download everything

Design Awards

  • iF gold award 2019
  • German Design Award 2019 - Winner
  • German Innovation Award 2019
  • Iconic Awards 2018 innovative architecture winner
  • universal design expert winner 2019
  • universal design consumer winner 2019
  • ZVSHK Award 2019
