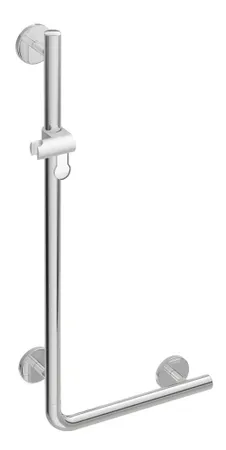

HEWI L-shaped support rail with shower head holder WARM TOUCH


950.33.20051

shower head holder in HEWI colour 98 (signal white) A1 = 900 mm, W1 = 400 mm


Product information

  • vertical and horizontal rails joined to form an L-shape, with shower head holder
  • made of high-quality chrome-look coated polyamide that is warm to touch
  • shower head holder made of high-quality polyamide in HEWI colour 98 (signal white)
  • with continuous, corrosion resistant steel core
  • vertical length 900 mm, horizontal length 400 mm, 90 mm deep, rail diameter 33 mm
  • wall connection with discreet supports (diameter 18 mm) perpendicular to wall and flat roses
  • rose diameter 80 mm, cap height 13 mm
  • shower head holder can be continuously tilted and, after pulling or pushing a large lever, its height can be adjusted
  • conical adapter on shower head holder makes it easier to hook in the handheld shower head
  • suitable for shower heads of various manufacturers
  • easy installation due to individually installed mounting plates made of high-quality stainless steel for hanging the L-shaped support rail
  • fixing with grub screw located on the underside of the rose
  • can be mounted in left hand or right hand position
  • suitable for HEWI hanging seats 802.51...11..., 802.51...12...
  • including non-corrosive HEWI fixing material

Technical specifications

Material and colour
Surface/Color
Chrome-look coated polyamide
Shower head holder
98
Alternative surface/color
Chrome-look coated polyamide
Shower head holder
92

Certificates

  • WARM TOUCH

Downloads

HEWI colour chart
Installation instructions (de, en, fr, nl, it, es, pl)
2D drawing
3D drawing
Product Data Sheet
Tender specifications
Download everything

Design Awards

  • universal design expert favorite 2013
