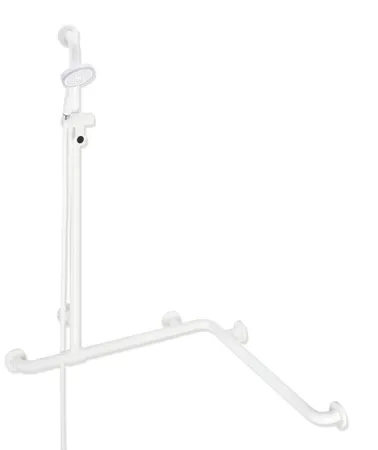

HEWI Rail with sideways adjustable vertical support bar and shower head holder incl. handheld shower and shower hose


801.35.312


Picture shows similar item
Picture shows similar item

Product information

  • vertically and horizontally arranged rails connected at right angles with steel fixing roses and shower head holder
  • with shower head rail that can be pushed vertically to the side (for mounting)
  • serves in the shower and bathtub area for holding and supporting
  • vertical length 1100 mm, horizontal lengths 762 mm
  • 88 mm deep, clear distance to the wall 55 mm, rail diameter 33 mm, rose diameter 70 mm
  • shower head holder can be infinitely inclined and its height can be adjusted after pulling or pressing a large-surface lever
  • conical holder on the shower head holder makes it easy to hook in the shower head
  • with a continuous corrosion-protected steel core
  • mount to the wall with wall-specific fixing material and roses from HEWI
  • can be mounted on the left and right side
  • suitable for HEWI hook-in seats 900.51..., 950.51..., 802.51... and 801.51...100 (only on W2)
  • made of high-gloss polyamide in HEWI colour 99
and
  • 1-jet shower head with shower hose made of synthetic material, colour white
  • shower head with soft-clean anti-limescale pimples
  • jet type: Rain
  • diameter shower head: 105 mm
  • pimples and ring made of light grey synthetic material
  • flow rate at 3 bar: 14 l/min
  • rinsable dirt collection sieve
  • connection thread G 1/2, connection size: DN 15
  • hose length 2000 mm
  • kink-protected
  • rotary cone protects the shower hose from twisting
  • metal rotary cone/metal knurl, chrome-plated
  • shower head tested to KTW and W270
  • shower hose tested to EN 1113 and KTW

Technical specifications

Material and colour
Color
99
