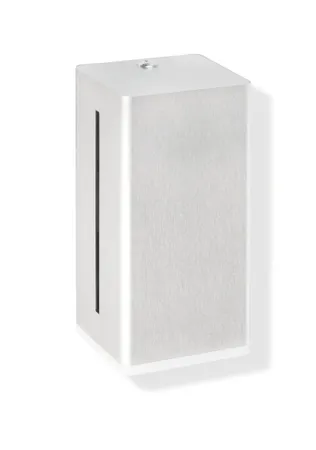

HEWI SENSORIC Electronic soap dispenser


Picture shows item in color 99 (pure white)
Picture shows item in color 98 (signal white)
Picture shows item in color 98 (signal white)
Picture shows item in color 99 (pure white)
Picture shows item in color 92 (anthracite gray)
Picture shows item in color 92 (anthracite gray)

Product information

  • cubic body with recessed wall base
  • used to hold standard liquid soap
  • with inner container for free filling, capacity 500 ml
  • inner container can be removed for cleaning
  • side level indicator
  • non-contact soap dispensing
  • illumination of the output area when the sensor is activated (blue light)
  • with battery change indicator
  • with locking system as protection against misuse
  • maintenance-free
  • 130 mm wide, 270 mm high and 113 mm deep, wall-mounted base 10 mm deep
  • for wall mounting
  • made of high-quality stainless steel, satin surface finish
  • opening made of high-quality polyamide in HEWI colours 90 (jet black), 92 (anthracite grey), 98 (signal white) or 99 (pure white)
  • including non-corrosive HEWI fixing material
  • batteries (AA 1.5 V / 4 pcs.) not included in the scope of supply
  • CE marking in accordance with EMC Directive 2014/30/EU

Technical specifications

Material and colour
Stainless steel


  • CE mark
  • HEWI sensoric


HEWI colour chart
Installation instructions (de, en, fr, nl, it, es, pl)
2D drawing
Product Data Sheet
Tender specifications
Download everything

Design Awards

  • iF design award 2008
  • red dot award: Product Design - Honourable Mention 2008
Technical information subject to alteration
