HEWI Shower grab bar (USA)


801.35US110

25 1/2" x 25 1/2" (647 x 647 mm)

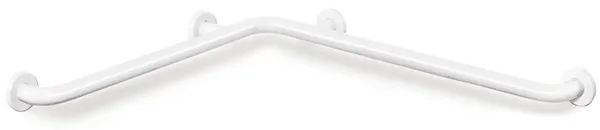

Picture shows item in color 99 (pure white)



Product information

  • arranged horizontally, rods connected at a right angle with steel fixing roses
  • horizontal lengths 25 1/2 inch x 25 1/2 inch (647 x 647 mm)
  • 2 3/4 inch (70 mm) deep, rail diameter 1 5/16 inch (33 mm), rose diameter 2 3/4 inch (70 mm)
  • with corrosion-protected steel core throughout
  • wall mounting with wall-specific fixing material and roses from HEWI
  • can be mounted on the right and left side
  • suitable for removable hanging seats 801.51US100 and 801.51US110
  • maximum loading capacity 330 lbs (150 kg)
  • made from high-grade synthetic material in the HEWI colors 99 (pure white), 95 (stone gray), 92 (anthracite gray), 90 (jet black), 86 (sand), 84 (umber) and 33 (ruby red)
  • meets the requirements of 2010 ADA standards and ICC/ANSI A117.1-2017

HÄFELE Item Number 988.65.3xx

Technical specifications

Material and colour
Colors
Polyamide
99
95
92
90
86
84
33
Alternative colors
Polyamide, mat
99
95
92

Certificates

  • ADA compliant

Downloads

HEWI colour chart
Installation instructions (en)
2D drawing
Product Data Sheet
Tender specifications
Download everything
Technical information subject to alteration
