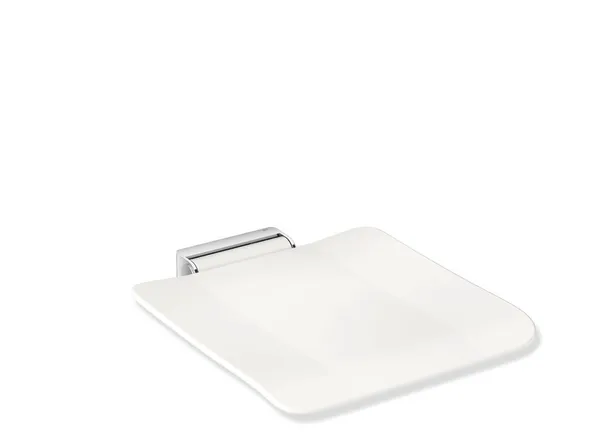

HEWI Hinged seat



Picture shows item in colour 98 (signal white)
Picture shows item in colour 92 (anthracite grey)
Picture shows item in colour 98 (signal white)

Product information

  • construction consisting of wall bracket and continuous seat
  • slip-resistant, textured seat made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey)
  • reinforcement of the seat made of aluminium, powder coated in the colour of the seat
  • wall bracket made of stainless steel, chrome
  • seat can be folded up to save space
  • seat depth when folded up 77 mm
  • weight capacity up to 150 kg
  • the aluminium seat bracket ensures stability and safety
  • the moulded seat of the hinged seat defines the sitting position (lightly curved shape provides pleasant support)
  • seat made of thermoplastic synthetic material (polypropylene) enables and extremely resistant, hygienic surface and particularly soft seat comfort
  • maintenance free, permanently smooth and easy moving joint
  • 450 mm wide, 525 mm deep and 112 mm high
  • seat 450 mm wide and 450 mm deep
  • for mounting with non-corrosive and tested HEWI fixing materials for different wall systems (to be ordered separately)
  • sealing tape for sealing the fixing points is included in the scope of supply
  • fulfils the highest cleaning product resistance and hygiene requirements
  • fulfils the DIN 18040, ├ľNORM B1600/1601 and SIA 500 requirements

Technical specifications

Material and colour
Alternative surfaces/colours
Powder coatings


HEWI colour chart
Drill holes
Installation instructions (de, en, fr, nl, it, es, pl)
2D drawing
3D drawing
Product Data Sheet
Tender specifications
Download everything

Design Awards

  • iF gold award 2019
  • German Design Award 2019 - Winner
  • German Innovation Award 2019
  • Iconic Awards 2018 innovative architecture winner
  • universal design expert winner 2019
  • universal design consumer winner 2019
  • ZVSHK Award 2019
