with hygiene cutout and floor support, seat 450 x 450, finish - chrome
Numer artykułu 900.51.21440 98
HEWI folding seat
wall bracket made of stainless steel, chrome, chrome-plated, Seat made of textured plastic with hygiene cut-out, Seat 450 mm wide, 450 mm deep, with floor support for seat height 450-500 mm, powder coated in the colour of the seat, tested up to 200 kg when used with HEWI fixing material, Recommended maximum weight of the user: 150 kg, fulfils the DIN 18040 requirements, ÖNORM B1600/1601 and SIA 500.
Pokaż więcej
wall bracket made of stainless steel, chrome, chrome-plated, Seat made of textured plastic with hygiene cut-out, Seat 450 mm wide, 450 mm deep, with floor support for seat height 450-500 mm, powder coated in the colour of the seat, tested up to 200 kg when used with HEWI fixing material, Recommended maximum weight of the user: 150 kg, fulfils the DIN 18040 requirements, ÖNORM B1600/1601 and SIA 500.
Aktualny kolor: 98 (sygnał biały)
EAN
4014885606673
Funkcja
uchylna
Kolor
Wariant
Podpórka
Montaż
zamocowane na stałe
Materiał Siedziska/ Oparcia
Materiał syntetyczny
Materiał
Chrom

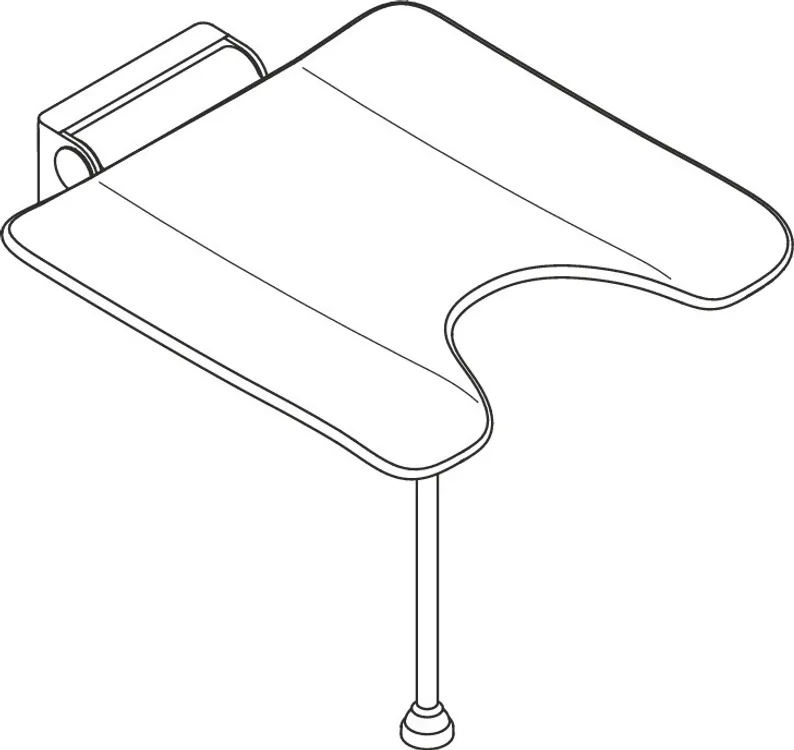

Hinged seat, System 900
- Construction consisting of wall console and continuous seat surface
- anti-slip, textured seat made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey)
- Aluminium seat reinforcement, powder coated in the colour of the seat
- Wall bracket made of high-quality stainless steel, chrome-plated
- Seat with hygiene cut-out can be folded up to save space
- Seat depth when folded up 77 mm
- with floor support for seat height 450-500 mm, powder coated in the colour of the seat
- 450 mm wide, 525 mm deep and 112 mm high
- Seat 450 mm wide and 450 mm deep
- for mounting with non-corrosive and tested HEWI fixing material for different wall systems (to be ordered separately).
- Sealing tape and sealing rods for sealing the mounting points according to DIN 18534 are included in the delivery
- tested up to 200 kg when used with HEWI fixing material
- Recommended maximum weight of the user: 150 kg
- Fulfils the DIN 18040 requirements, ÖNORM B1600/1601 and SIA 500
- Construction consisting of wall console and continuous seat surface
- anti-slip, textured seat made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey)
- Aluminium seat reinforcement, powder coated in the colour of the seat
- Wall bracket made of high-quality stainless steel, chrome-plated
- Seat with hygiene cut-out can be folded up to save space
- Seat depth when folded up 77 mm
- with floor support for seat height 450-500 mm, powder coated in the colour of the seat
- 450 mm wide, 525 mm deep and 112 mm high
- Seat 450 mm wide and 450 mm deep
- for mounting with non-corrosive and tested HEWI fixing material for different wall systems (to be ordered separately).
- Sealing tape and sealing rods for sealing the mounting points according to DIN 18534 are included in the delivery
- tested up to 200 kg when used with HEWI fixing material
- Recommended maximum weight of the user: 150 kg
- Fulfils the DIN 18040 requirements, ÖNORM B1600/1601 and SIA 500
Nagrody za wzornictwo
Przyznane przez
Pliki do pobrania
| 2D | DXF | |
| 3DF | DXF | |
| Wzór wiercenia | JPG | |
| Arkusz danych produktu | ||
| Instrukcja montażu | ||
| Instrukcje dotyczące pielęgnacji |
Dokumenty
| Ausschreiben.de | Link | |
| Tabelą kolorów | Link | |
| Montaż wideo 1 | Link |
