Numer artykułu 805.50.231}
HEWI Range 805 Classic Mobile hinged support rail
two parallel rails, arranged on top of each other, weight capacity up to 100 kg, for mobile use, for retrofitting on mounting plate 950.50.016, must be ordered separately, projection 900 mm, 250 mm high and 75 mm wide, rail diameter 33 mm, tube thickness 2 mm, made of high-quality stainless steel, Surface satin finished, produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices, fulfils the ÖNORM B1600/1601 requirements.
Pokaż więcej
two parallel rails, arranged on top of each other, weight capacity up to 100 kg, for mobile use, for retrofitting on mounting plate 950.50.016, must be ordered separately, projection 900 mm, 250 mm high and 75 mm wide, rail diameter 33 mm, tube thickness 2 mm, made of high-quality stainless steel, Surface satin finished, produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices, fulfils the ÖNORM B1600/1601 requirements.
EAN
4014885613886
Funkcja
uchylna
Wersja
suitable for both sides
Wymiar
900 mm
Wariant
bez funkcji różnej
Montaż
mobilny
Materiał
Stal

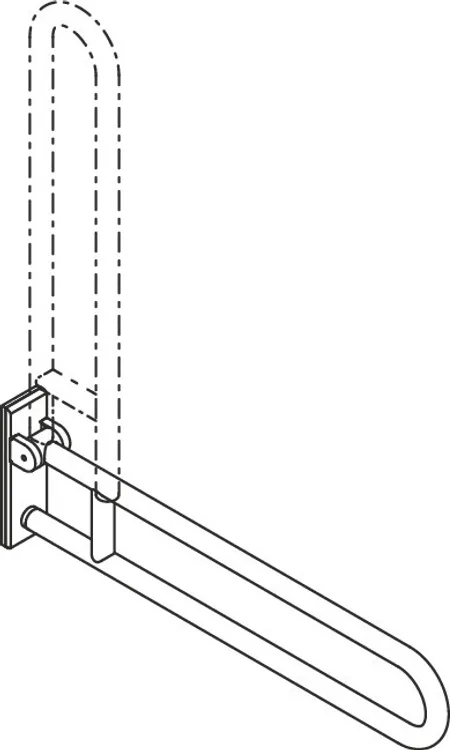

Range 805 Classic mobile hinged support rail
- two parallel rails running one above the other joined by a connecting bend (formed of a continuous tube)
- for holding on to and providing support
- weight capacity 100 kg
- can be folded upwards and, folded downwards with braking mechanism
- for mobile use
- for easy and flexible retrofitting on existing, preassembled mounting plate 950.50.016, must be ordered separately
- toolless and quick installation by simple attachment of the mobile hinged support rail
- secured by fixing screw to prevent unintentional removal
- 900 mm projection, 250 mm high and 75 mm deep, 33 mm rail diameter, tube thickness 2 mm
- made of high-quality stainless steel, satin surface finish
- toilet roll holder 805.50.015 as well as WC flushing mechanism (radio-controlled) 805.50.060 and floor supports 950.50.022XA and 950.50.024XA for retrofitting
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
- fulfils the ÖNORM B1600/1601 requirements
- two parallel rails running one above the other joined by a connecting bend (formed of a continuous tube)
- for holding on to and providing support
- weight capacity 100 kg
- can be folded upwards and, folded downwards with braking mechanism
- for mobile use
- for easy and flexible retrofitting on existing, preassembled mounting plate 950.50.016, must be ordered separately
- toolless and quick installation by simple attachment of the mobile hinged support rail
- secured by fixing screw to prevent unintentional removal
- 900 mm projection, 250 mm high and 75 mm deep, 33 mm rail diameter, tube thickness 2 mm
- made of high-quality stainless steel, satin surface finish
- toilet roll holder 805.50.015 as well as WC flushing mechanism (radio-controlled) 805.50.060 and floor supports 950.50.022XA and 950.50.024XA for retrofitting
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
- fulfils the ÖNORM B1600/1601 requirements
