Edycja mat
Numer artykułu 801.51B910 99

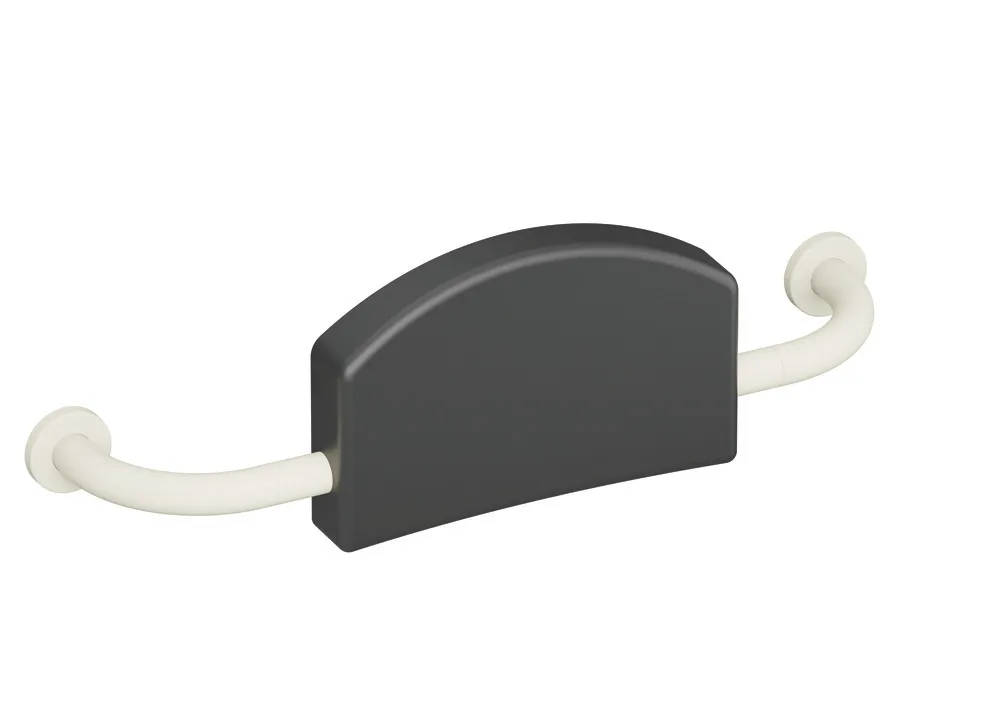

HEWI Range 801 Backrest rail
attached padded backrest with both sides, right-angled rails attached on both sides and fixing roses, fulfils the DIN 18040 requirements, with continuous, corrosion resistant steel core, centre-to-centre from 670 to 730 mm adjustable, 220 mm high and 150 mm deep, Backrest 350 mm wide, rail diameter 33 mm, rose diameter 70 mm, backpad made of black PUR, made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey), supplied with fixing material BM211.
Pokaż więcej
attached padded backrest with both sides, right-angled rails attached on both sides and fixing roses, fulfils the DIN 18040 requirements, with continuous, corrosion resistant steel core, centre-to-centre from 670 to 730 mm adjustable, 220 mm high and 150 mm deep, Backrest 350 mm wide, rail diameter 33 mm, rose diameter 70 mm, backpad made of black PUR, made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey), supplied with fixing material BM211.
Aktualny kolor: 99 (czysta biel)
EAN
4014885598695
Odległość montażu
670 - 730 mm
Kolor
Wariant
bez uchwytu
Materiał Siedziska/ Oparcia
Poliamid, matowy
Materiał
Poliamid, matowy
Range 801 Backrest rail
- padded backrest with right-angled rails attached on both sides and fixing roses
- serves as back support for toilet users
- with continuous, corrosion resistant steel core
- for wall mounting with roses
- 670 to 730 mm wide, 220 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 33 mm, rose diameter 70 mm
- backpad made of black PUR
- made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey)
- fulfils the DIN 18040 and ÖNORM B1600/1601 requirements
- padded backrest with right-angled rails attached on both sides and fixing roses
- serves as back support for toilet users
- with continuous, corrosion resistant steel core
- for wall mounting with roses
- 670 to 730 mm wide, 220 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 33 mm, rose diameter 70 mm
- backpad made of black PUR
- made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey)
- fulfils the DIN 18040 and ÖNORM B1600/1601 requirements
Nagrody za wzornictwo
Przyznane przez
Pliki do pobrania
| 2D | DXF | |
| 3DF | DXF | |
| 3DV | DXF | |
| Arkusz danych produktu | ||
| Instrukcja montażu | ||
| Instrukcje dotyczące pielęgnacji |
Dokumenty
| Ausschreiben.de | Link | |
| Tabelą kolorów | Link |
Oparcie
Edycja mat
Numer artykułu 801.51B910 99
