Edycja mat
Numer artykułu 801.51B920L 99

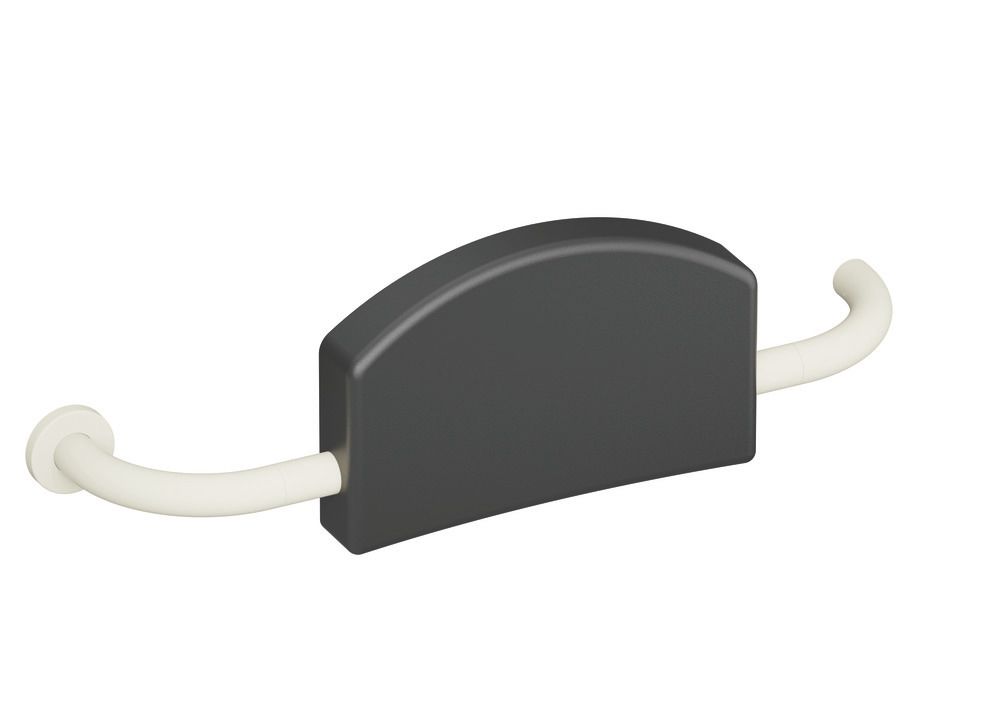

HEWI Range 801 Backrest rail
attached padded backrest with both sides, bent at right angles rails and one sided fixing rose (supplied with fixing material BM211), fulfils the DIN 18040 requirements, with continuous, corrosion resistant steel core, left-hand version, centre-to-centre from 670 to 730 mm adjustable, 220 mm high and 150 mm deep, Backrest 350 mm wide, rail diameter 33 mm, rose diameter 70 mm, backpad made of black PUR, made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey), wall specific HEWI fixing material to be ordered separately.
Pokaż więcej attached padded backrest with both sides, bent at right angles rails and one sided fixing rose (supplied with fixing material BM211), fulfils the DIN 18040 requirements, with continuous, corrosion resistant steel core, left-hand version, centre-to-centre from 670 to 730 mm adjustable, 220 mm high and 150 mm deep, Backrest 350 mm wide, rail diameter 33 mm, rose diameter 70 mm, backpad made of black PUR, made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey), wall specific HEWI fixing material to be ordered separately.
Aktualny kolor: 99 (czysta biel)
EAN
4014885598749
grupa artykułów
Oparcie
Odległość montażu
670 - 730 mm
Kolor
Wariant
z jednym uchwytem
Materiał Siedziska/ Oparcia
Poliamid, matowy
Materiał
Poliamid, matowy
Range 801 Backrest rail
- padded backrest with right-angled rails attached on both sides and fixing roses
- serves as back support for toilet users
- with continuous, corrosion resistant steel core
- left-hand version
- one-sided installation on the wall with roses (right)
- one-sided installation on HEWI hinged support rails or stationary support rails with wall plate (left)
- can be adjusted on site
- 670 to 730 mm wide, 220 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 33 mm, rose diameter 70 mm
- backpad made of black PUR
- made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey)
- fulfils the DIN 18040 and ÖNORM B1600/1601 requirements
- padded backrest with right-angled rails attached on both sides and fixing roses
- serves as back support for toilet users
- with continuous, corrosion resistant steel core
- left-hand version
- one-sided installation on the wall with roses (right)
- one-sided installation on HEWI hinged support rails or stationary support rails with wall plate (left)
- can be adjusted on site
- 670 to 730 mm wide, 220 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 33 mm, rose diameter 70 mm
- backpad made of black PUR
- made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey)
- fulfils the DIN 18040 and ÖNORM B1600/1601 requirements
Nagrody za wzornictwo
Przyznane przez
Pliki do pobrania
Dokumenty
| Ausschreiben.de | Link | |
| Tabelą kolorów | Link |
