Numer artykułu 111XA.2530G1
HEWI System 111 Pull Handle

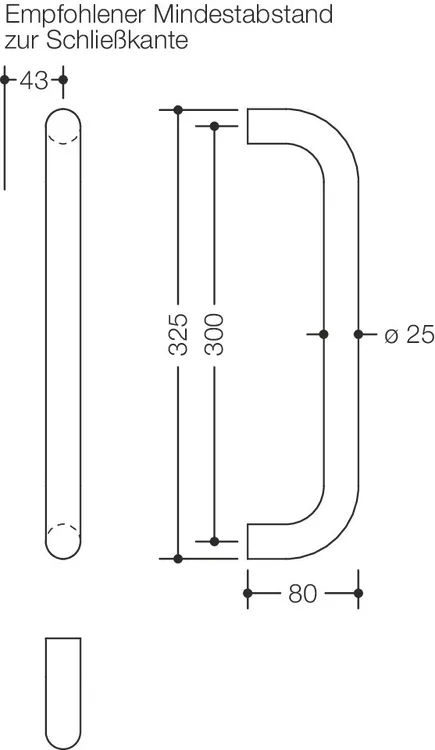

Straight handle with curved ends, stainless steel, Surface satin finished, centre-to-centre 300 mm, made of round tube 25 mm diameter, 1.5 mm wall thickness, for one-sided and paired (double-sided) fixing.
Recommendation! When ordering please clarify dimensions and/or features and options
Pokaż więcej Straight handle with curved ends, stainless steel, Surface satin finished, centre-to-centre 300 mm, made of round tube 25 mm diameter, 1.5 mm wall thickness, for one-sided and paired (double-sided) fixing.
Recommendation! When ordering please clarify dimensions and/or features and options
DIN Kierunek
Lewa/Prawa
EAN
4014884692165
Wymiar osi
300 mm
Kształt podpory
prosty
Średnica uchwytu
25 mm
Podstawowy kolor uchwytu do pchania
optyka stali szlachetnej
Materiał
Stal
Stainless steel pull handle
System 111 made of a tube (1.4301) diameter 25 mm, 1.5 mm thick, for one-sided and paired fixing on glass, wooden, PVC and metal doors (aluminium: 1 to 3-chamber, steel: 1 chamber profiles),
Load bearing capacity under alternating load 100 kg on wooden and metal doors, 50 kg on PVC doors, with 2 fixing points, fixing outside the lock area or within the lock area, as well as fixing through the lock.

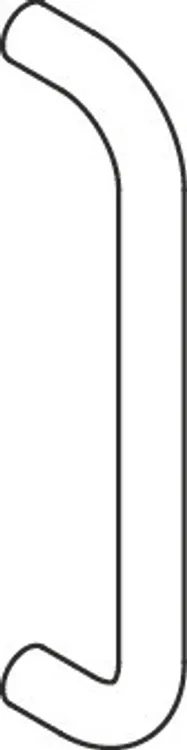

Straight handle in a curved shape, with straight supports, prepared for mounting on leaf doors.
Surface satin finished
centre-to-centre 300 mm
System 111 made of a tube (1.4301) diameter 25 mm, 1.5 mm thick, for one-sided and paired fixing on glass, wooden, PVC and metal doors (aluminium: 1 to 3-chamber, steel: 1 chamber profiles),
Load bearing capacity under alternating load 100 kg on wooden and metal doors, 50 kg on PVC doors, with 2 fixing points, fixing outside the lock area or within the lock area, as well as fixing through the lock.
Straight handle in a curved shape, with straight supports, prepared for mounting on leaf doors.
Surface satin finished
centre-to-centre 300 mm
Pliki do pobrania
| 2D | DXF | |
| Rodzaje mocowania | ||
| Arkusz danych produktu | ||
| Uwaga dotycząca montażu |
