Edycja mat
Numer artykułu 950.50B021XA 99
HEWI Floor support
vertical floor support for retrofitting on hinged support rails and stationary support rails 801.50..., mounting height 760 mm (to fulfil the DIN 18040 height requirements), connection made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey), support made of high-quality stainless steel, satin surface, vertical length 607 mm, height adjustment within +/- 20 mm range possible, produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices .
Pokaż więcej vertical floor support for retrofitting on hinged support rails and stationary support rails 801.50..., mounting height 760 mm (to fulfil the DIN 18040 height requirements), connection made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey), support made of high-quality stainless steel, satin surface, vertical length 607 mm, height adjustment within +/- 20 mm range possible, produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices .
Aktualny kolor: 99 (czysta biel)
EAN
4014885604501
grupa artykułów
Akcesoria
Wersja
suitable for both sides
Kolor
Materiał
Poliamid, matowy
Floor support
- vertical floor support for retrofitting on hinged support rails and stationary support rails 801.50...
- installation height 760 mm (to fulfil the DIN 18040 height requirements)
- easy installation
- connection made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey)
- support made of high-quality stainless steel with satin

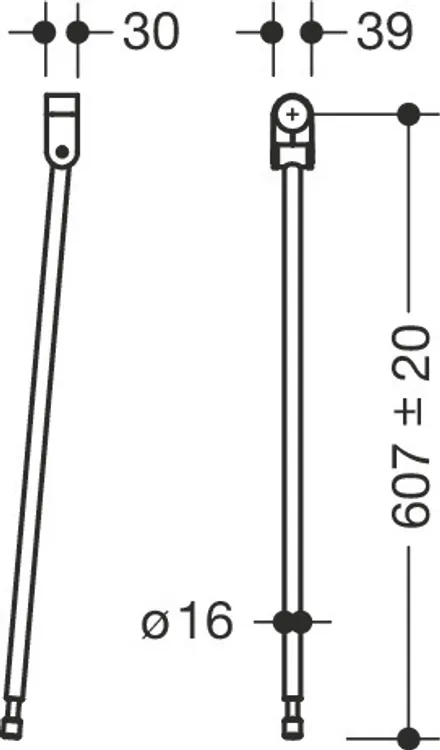

- vertical length 607 mm
- height adjustment within +/- 20 mm range possible
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
- vertical floor support for retrofitting on hinged support rails and stationary support rails 801.50...
- installation height 760 mm (to fulfil the DIN 18040 height requirements)
- easy installation
- connection made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey)
- support made of high-quality stainless steel with satin
- vertical length 607 mm
- height adjustment within +/- 20 mm range possible
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
Nagrody za wzornictwo
Przyznane przez
Pliki do pobrania
| 2D | DXF | |
| 3DF | DXF | |
| 3DV | DXF | |
| Arkusz danych produktu | ||
| Instrukcja montażu | ||
| Instrukcje dotyczące pielęgnacji |
Dokumenty
| Ausschreiben.de | Link | |
| Tabelą kolorów | Link |
