Uchwyt kątowy

Edycja mat
Numer artykułu 801.22B206 99

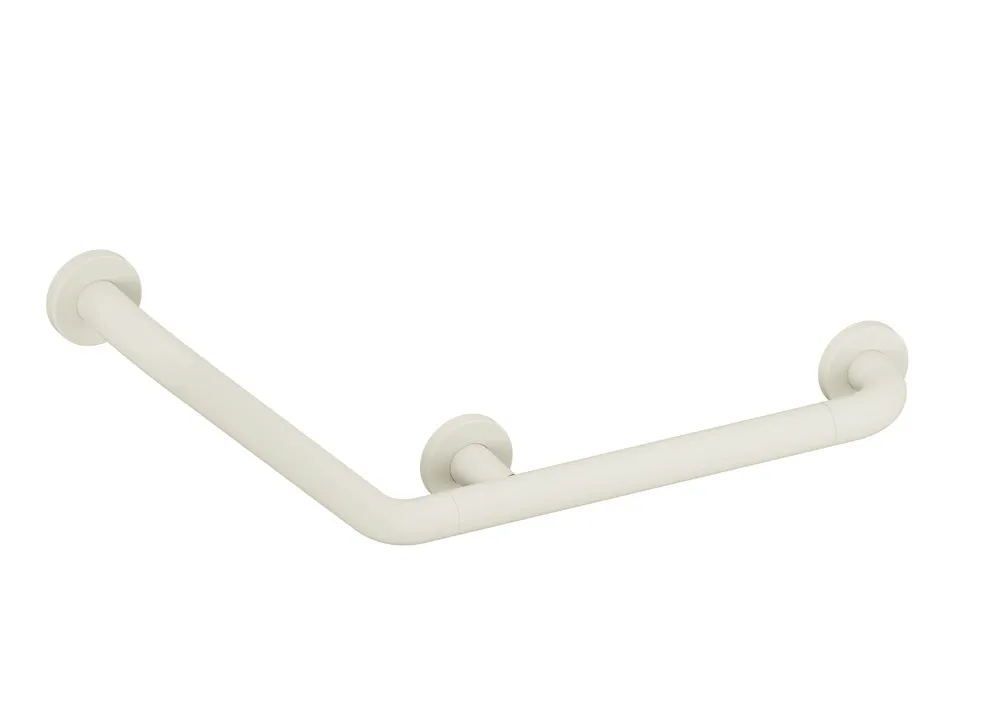

HEWI Range 801 L-shaped support rail
centre-to-centre 295 mm and 325 mm, angle 135°, 200 mm high, 91 mm deep, rail diameter 33 mm, rose diameter 70 mm, made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey), with metal core and stainless steel reinforced end bends, toilet paper holder upgrade kit 801.50B011 and toilet flushing mechanism (radio) upgrade kit 801.50B060 for retrofitting.

Pokaż więcej

Aktualny kolor: 99 (czysta biel)

Pliki do pobrania i dokumenty

Arkusz danych produktu

Do listy porównawczej

EAN

4014885600428

grupa artykułów

Uchwyt kątowy

Średnica drążka

33 mm

Wersja

Rdzeń metalowy/ rozety z tworzywa

Wymiar

325 x 295 x 200 mm

Kolor

99czysta biel

Kąt

Uchwyt kątowy 135°

Materiał

Poliamid, matowy

Range 801 L-shaped support rail
- rails connected at an obtuse angle (> 90°) with fixing roses made of synthetic material
- increased stability through 3 mounting supports
- for holding on to and providing support on standing up and sitting down
- can be mounted in left hand or right hand position
- for wall mounting with special HEWI fixing materials and roses

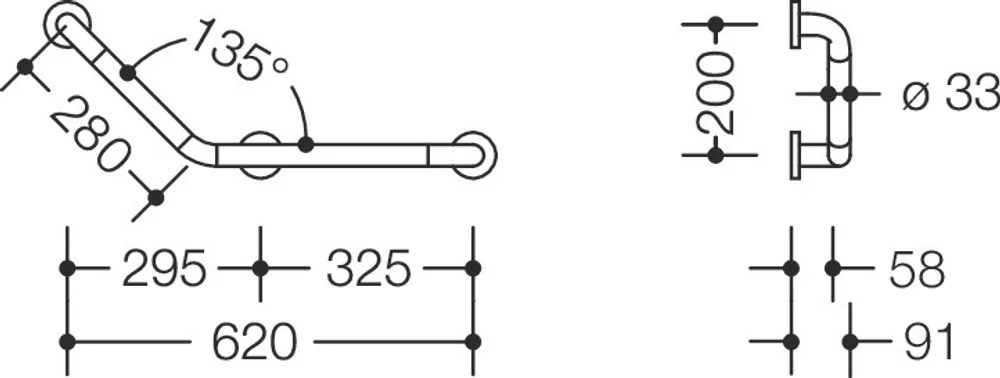

- centre-to-centre dimensions 295 mm and 325 mm, 135° angle, 200 mm high, 91 mm deep
- bar diameter 33 mm, rose diameter 70 mm
- made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey)
- with metal core and stainless steel reinforced end bends
- toilet paper holder upgrade kit 801.50B011 and toilet flushing mechanism (radio) upgrade kit 801.50B060 for retrofitting
