wersja lewostronna
Numer artykułu 900.22.113XA

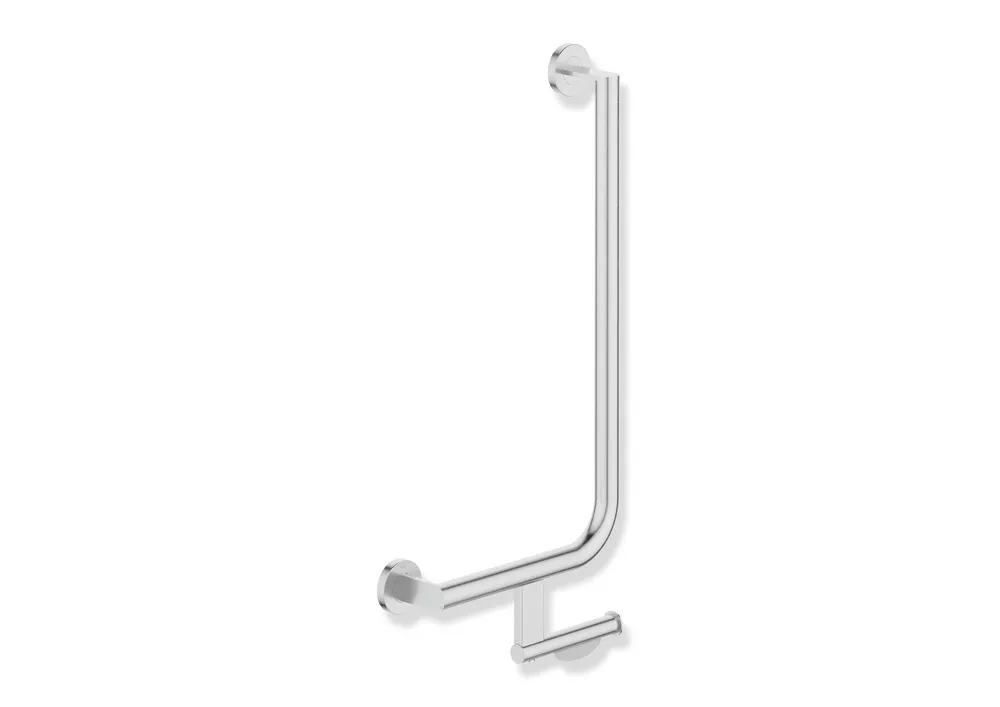

HEWI L-shaped support rail with toilet roll holder, System 900

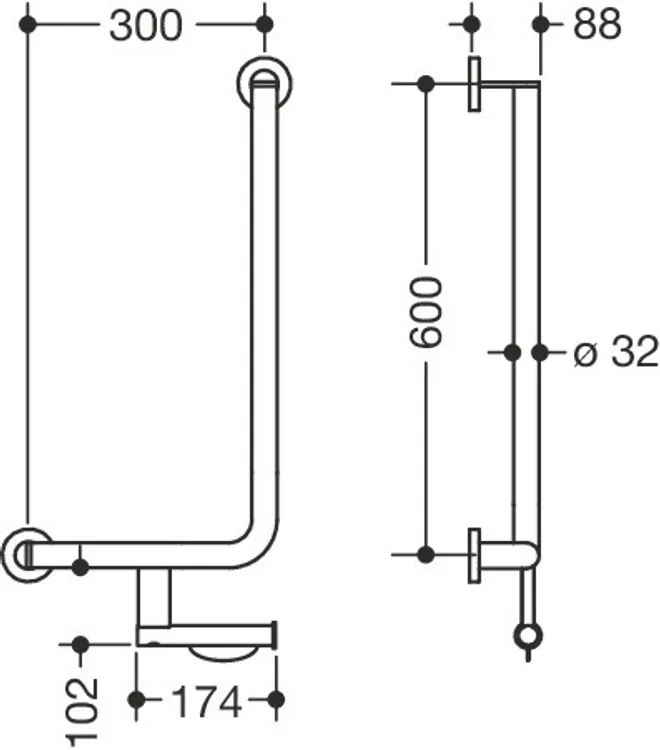

made of high-quality stainless steel, satin, rails arranged vertically and horizontally, joined at right-angles with mounting roses, left-hand version, horizontal lengths 300 mm, vertical length 600 mm, 88 mm deep, rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm, including non-corrosive HEWI fixing material.
Pokaż więcej
made of high-quality stainless steel, satin, rails arranged vertically and horizontally, joined at right-angles with mounting roses, left-hand version, horizontal lengths 300 mm, vertical length 600 mm, 88 mm deep, rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm, including non-corrosive HEWI fixing material.
EAN
4014885558958
Wersja
lewo z uchwyt na papier toaletowy (persp. użytkownika)
Średnica drążka
32 mm
Wymiar
600 x 300 mm
Kąt
Uchwyt kątowy 90°
Materiał
Stal
L-shaped support rail with toilet roll holder, System 900
- vertical and horizontal rails, joined at right-angles with fixing roses
- with toilet roll holder
- left-hand version
- horizontal length 300 mm, vertical length 600 mm, 88 mm deep
- rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm
- made of high-quality stainless steel, satin
- including non-corrosive and tested HEWI fixing material for wall mounting and sealing tape for sealing the drilling points
- vertical and horizontal rails, joined at right-angles with fixing roses
- with toilet roll holder
- left-hand version
- horizontal length 300 mm, vertical length 600 mm, 88 mm deep
- rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm
- made of high-quality stainless steel, satin
- including non-corrosive and tested HEWI fixing material for wall mounting and sealing tape for sealing the drilling points
Nagrody za wzornictwo
Przyznane przezPliki do pobrania
2D | DXF | |
3DF | DXF | |
Arkusz danych produktu | ||
Instrukcja montażu | ||
Instrukcje dotyczące pielęgnacji |
Dokumenty
BIM | Link | |
Tabelą kolorów | Link | |
Montaż wideo 1 | Link |
Uchwyt kątowy
wersja lewostronna
Numer artykułu 900.22.113XA
