Edycja mat
Numer artykułu 801.50B320 99

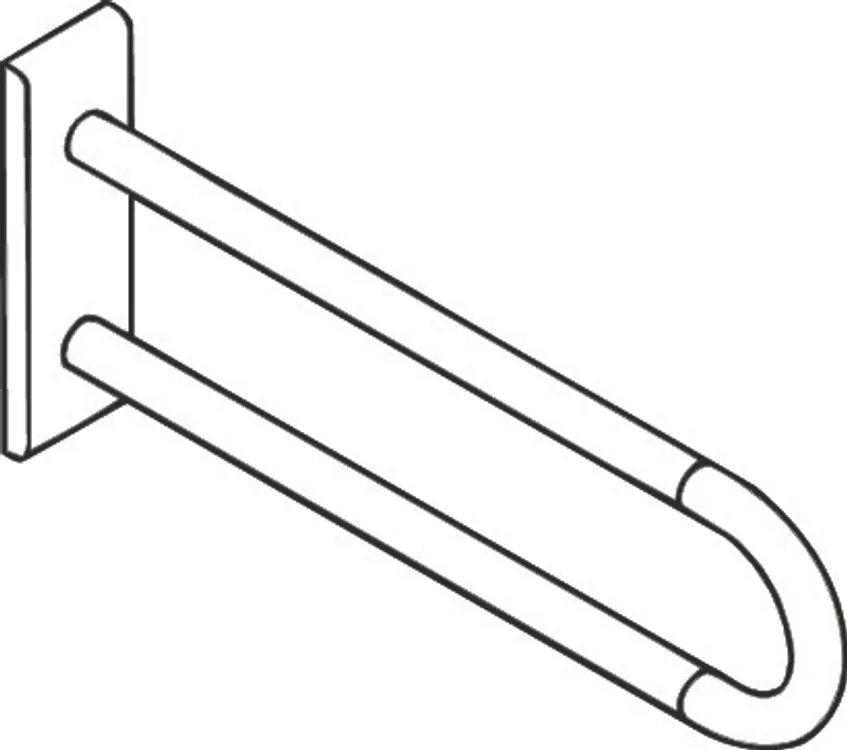

HEWI Stationary support rail
wall-mounting plate cover 259 mm high and 78 mm wide, rail diameter 33 mm, projection 850 mm, made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey), for holding on to and providing support, weight capacity to DIN 18040, produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices, wall specific HEWI fixing material to be ordered separately.
Pokaż więcej wall-mounting plate cover 259 mm high and 78 mm wide, rail diameter 33 mm, projection 850 mm, made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey), for holding on to and providing support, weight capacity to DIN 18040, produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices, wall specific HEWI fixing material to be ordered separately.
Aktualny kolor: 99 (czysta biel)
EAN
4014885596493
grupa artykułów
Uchwyt ścienny
Hilfsmittelnummer
04.40.05.1250
Wersja
suitable for both sides
Wymiar
850 mm
Kolor
Wariant
bez funkcji różnej
Montaż
zamocowane na stałe
Materiał
Poliamid, matowy
Rdzeń
Rdzeń stalowy
Range 801 Stationary support
- two parallel rails running one above the other joined by a connecting bend
- for holding on to and providing support
- weight capacity 100 kg
- with continuous, corrosion resistant steel core and wall plate made of polyamide with integrated steel core
- for wall mounting with wall-specific HEWI fixing material
- sealing tape for sealing the fixing points is included in the scope of supply
- concealed fixing
- 850 mm projection, 259 mm high and 78 mm deep, 33 mm rail diameter
- made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey)
- toilet roll holder 801.50B011, WC flushing mechanism (radio-controlled) 801.50B060 and floor supports 950.50B021XA and 950.50B023XA for retrofitting
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
- two parallel rails running one above the other joined by a connecting bend
- for holding on to and providing support
- weight capacity 100 kg
- with continuous, corrosion resistant steel core and wall plate made of polyamide with integrated steel core
- for wall mounting with wall-specific HEWI fixing material
- sealing tape for sealing the fixing points is included in the scope of supply
- concealed fixing
- 850 mm projection, 259 mm high and 78 mm deep, 33 mm rail diameter
- made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey)
- toilet roll holder 801.50B011, WC flushing mechanism (radio-controlled) 801.50B060 and floor supports 950.50B021XA and 950.50B023XA for retrofitting
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
Nagrody za wzornictwo
Przyznane przez
Pliki do pobrania
Dokumenty
| Ausschreiben.de | Link | |
| Tabelą kolorów | Link |
