{650 mm wide, ergonomic handles, with overflow
Numer artykułu 950.11.140}

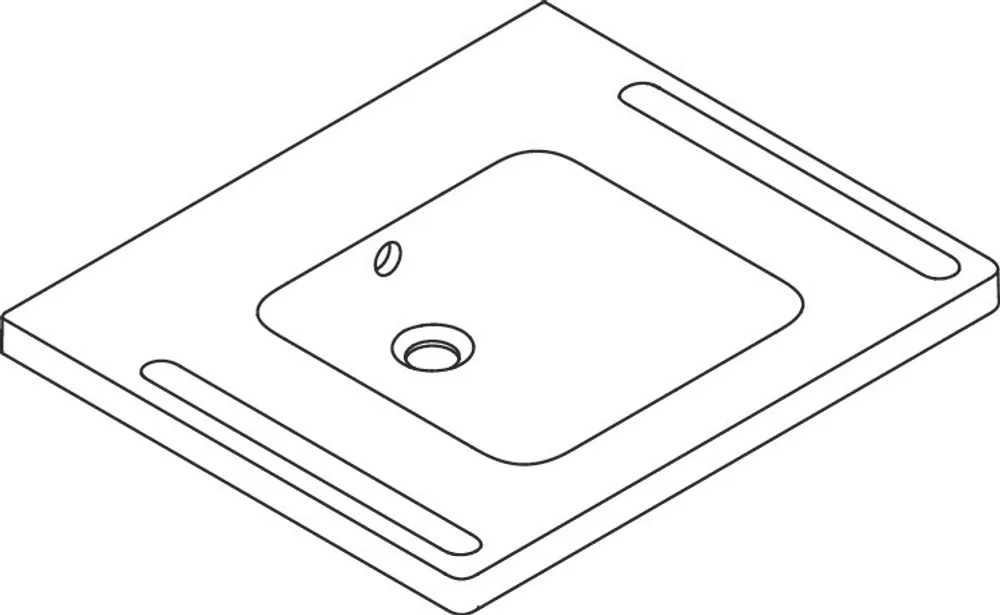

HEWI Washbasin
made of mineral composite material with non-porous surface, integrated handle to hold onto on the side, can also be used as a towel holder, includes overflow with rose and cover, for wall-mounted fittings, wheelchair accessible, meets the requirements of DIN 18040 and ÖNORM B1600/1601, 650 mm wide, 550 mm deep, CE and UKCA marking according to Construction Products Regulation No. 305/2011.
Pokaż więcej
made of mineral composite material with non-porous surface, integrated handle to hold onto on the side, can also be used as a towel holder, includes overflow with rose and cover, for wall-mounted fittings, wheelchair accessible, meets the requirements of DIN 18040 and ÖNORM B1600/1601, 650 mm wide, 550 mm deep, CE and UKCA marking according to Construction Products Regulation No. 305/2011.
EAN
4014885560067
Rodzaj armatury
do armatur ściennych podtynkowych
Rodzaj
- Umywalki bez barier
Szerokość umywalki
650 mm
Washbasin
- made of mineral composite material with non-porous surface
- with shelf and deep rectangular basin with generous radii
- integrated handle to hold onto on the side, can also be used as a towel holder
- includes overflow with rose and cover
- the overflow can be replaced and renewed if necessary
- overflow is mounted between drain and siphon under the washbasin, h=25 mm, ø=70 mm
- for wall fitting
- wheelchair accessible to DIN 18040 and ÖNORM B1600/1601
- loading capacity to EN 14688
- 650 mm wide, 550 mm deep
- wash trough depth 100 mm
- for hanger bolt fixing
- CE and UKCA marking according to Construction Products Regulation No. 305/2011
- made of mineral composite material with non-porous surface
- with shelf and deep rectangular basin with generous radii
- integrated handle to hold onto on the side, can also be used as a towel holder
- includes overflow with rose and cover
- the overflow can be replaced and renewed if necessary
- overflow is mounted between drain and siphon under the washbasin, h=25 mm, ø=70 mm
- for wall fitting
- wheelchair accessible to DIN 18040 and ÖNORM B1600/1601
- loading capacity to EN 14688
- 650 mm wide, 550 mm deep
- wash trough depth 100 mm
- for hanger bolt fixing
- CE and UKCA marking according to Construction Products Regulation No. 305/2011
Nagrody za wzornictwo
Przyznane przez
Pliki do pobrania
| 2D | DXF | |
| 3DF | DXF | |
| Arkusz danych produktu | ||
| Deklaracja właściwości użytkowych | ||
| Uwaga dotycząca montażu | ||
| Instrukcje dotyczące pielęgnacji |
Dokumenty
| Tabelą kolorów | Link |
Umywalka
