meets the requirements of British Standard, Backrest anthracite grey
Article number 801.51.9132 99

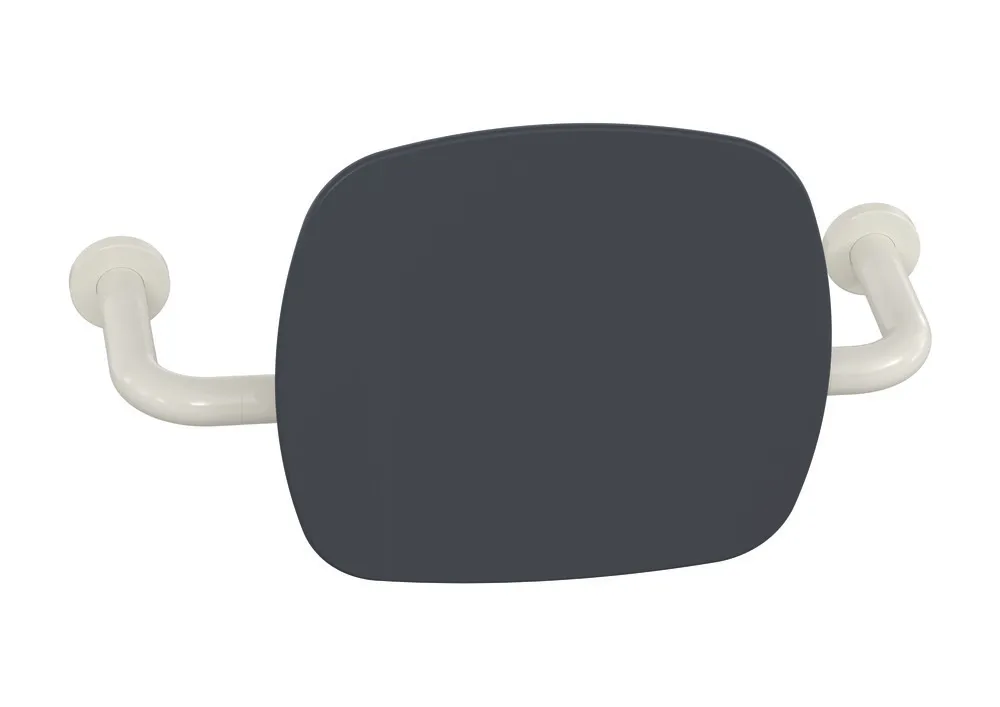

HEWI Back support
made of high-gloss polyamide, back rest made of synthetic material in HEWI colour 92 (anthracite grey), width 435 mm to 535 mm, depth 230 mm, back rest 334 mm high and 370 mm wide, rod diameter 33 mm, wall mounting with rosettes.
Show more made of high-gloss polyamide, back rest made of synthetic material in HEWI colour 92 (anthracite grey), width 435 mm to 535 mm, depth 230 mm, back rest 334 mm high and 370 mm wide, rod diameter 33 mm, wall mounting with rosettes.
Current color: 99 (pure white)
EAN
4014885637684
article group
Backrest
Mounting distance
435 - 535 mm
Colour
Variant
without hinged support rails
Material Seat/ Backrest
Synthetic material
Material
Polyamide
Back rest, Series 801
- back rest with right-angled rods and fixing rosettes on both sides
- user-friendly wall distance of 230 mm
- serves to support the back on the WC
- with continuous, corrosion-protected steel core
- wall mounting with rosettes

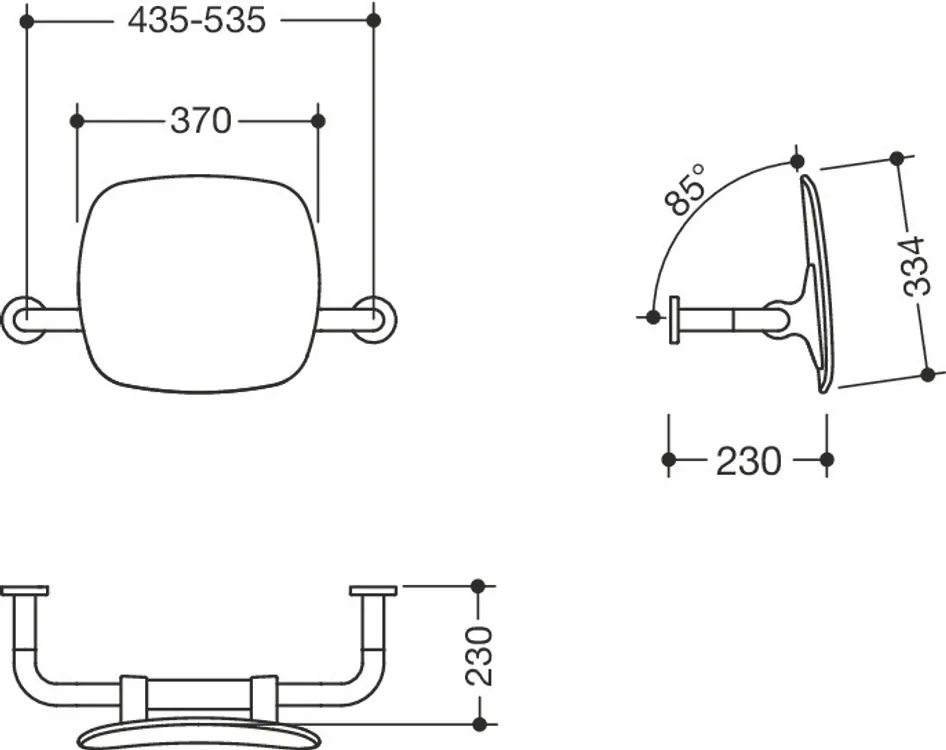

- 435 to 535 mm wide, 230 mm deep, back rest 334 mm high and 370 mm wide, rod diameter 33 mm, rosette diameter 70 mm
- back rest made of synthetic material in HEWI colour 92 (anthracite grey)
- made of high-gloss polyamide according to HEWI colour table
- back rest with right-angled rods and fixing rosettes on both sides
- user-friendly wall distance of 230 mm
- serves to support the back on the WC
- with continuous, corrosion-protected steel core
- wall mounting with rosettes
- 435 to 535 mm wide, 230 mm deep, back rest 334 mm high and 370 mm wide, rod diameter 33 mm, rosette diameter 70 mm
- back rest made of synthetic material in HEWI colour 92 (anthracite grey)
- made of high-gloss polyamide according to HEWI colour table
Design awards
Awarded by
Downloads
| 3DF | DXF | |
| Product data sheet | ||
| Installation instructions |
