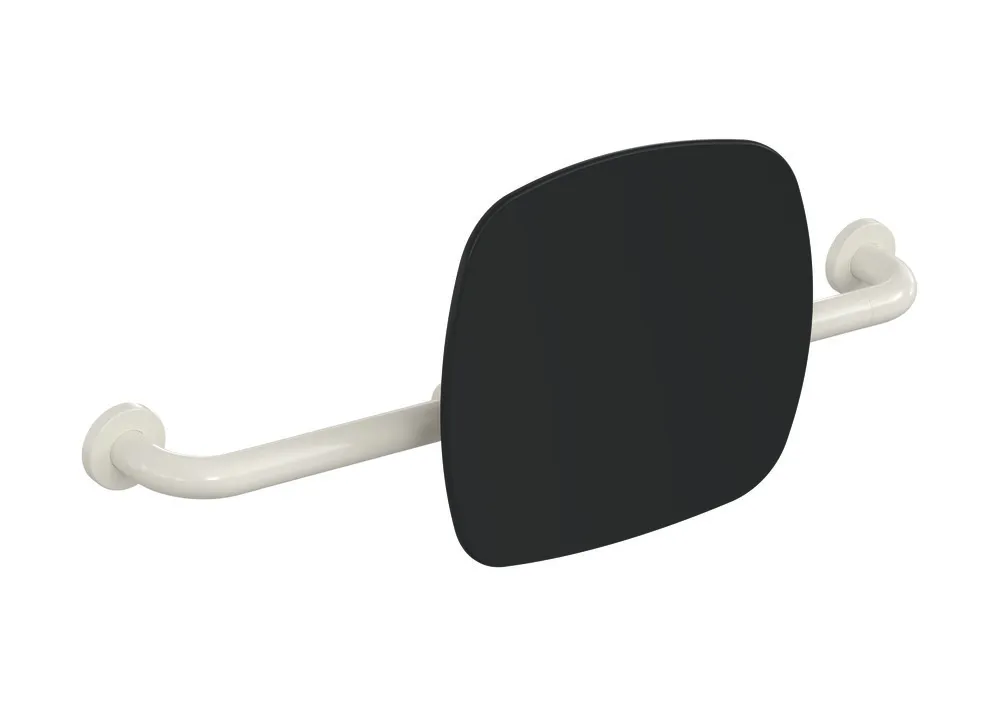

Backrest jet black
Article number 801.51.9163 99
HEWI Backrest rail
polyamide, high-polished, backrest made of synthetic material in HEWI colour 90 (jet black), width 650 to 750 mm, 150 mm deep, backrest 334 mm high and 370 mm wide, rail diameter 33 mm, wall mounting with roses, fulfils the DIN 18040 and ÖNORM B1600/1601 requirements.
Show more polyamide, high-polished, backrest made of synthetic material in HEWI colour 90 (jet black), width 650 to 750 mm, 150 mm deep, backrest 334 mm high and 370 mm wide, rail diameter 33 mm, wall mounting with roses, fulfils the DIN 18040 and ÖNORM B1600/1601 requirements.
Current color: 99 (pure white)
EAN
4014885638322
article group
Backrest
Mounting distance
650 - 750 mm
Colour
Variant
without hinged support rails
Material Seat/ Backrest
Synthetic material
Material
Polyamide
Back support, Series 801
- back rest with right-angled rods and fixing rosettes on both sides
- serves to support the back on the WC
- wall mounting with rosettes
- 650 to 750 mm wide, 150 mm deep, back rest 334 mm high and 370 mm wide, rod diameter 33 mm, rosette diameter 70 mm
- with continuous, corrosion-protected steel core
- back rest made of synthetic material in HEWI colour 90 (jet black)
- connection made of high-gloss polyamide according to HEWI colour chart
- meets the requirements according to DIN 18040 and ÖNORM B1600/1601
- back rest with right-angled rods and fixing rosettes on both sides
- serves to support the back on the WC
- wall mounting with rosettes
- 650 to 750 mm wide, 150 mm deep, back rest 334 mm high and 370 mm wide, rod diameter 33 mm, rosette diameter 70 mm
- with continuous, corrosion-protected steel core
- back rest made of synthetic material in HEWI colour 90 (jet black)
- connection made of high-gloss polyamide according to HEWI colour chart
- meets the requirements according to DIN 18040 and ÖNORM B1600/1601
Design awards
Awarded by
Downloads
| 2D drawing | DXF | |
| 3DF | DXF | |
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions |
Documents
| Ausschreiben.de | Link | |
| BIM | Link | |
| Colour Chart | Link |
