Model righthand,
support right, rose left
Article number 801.51.920R 97

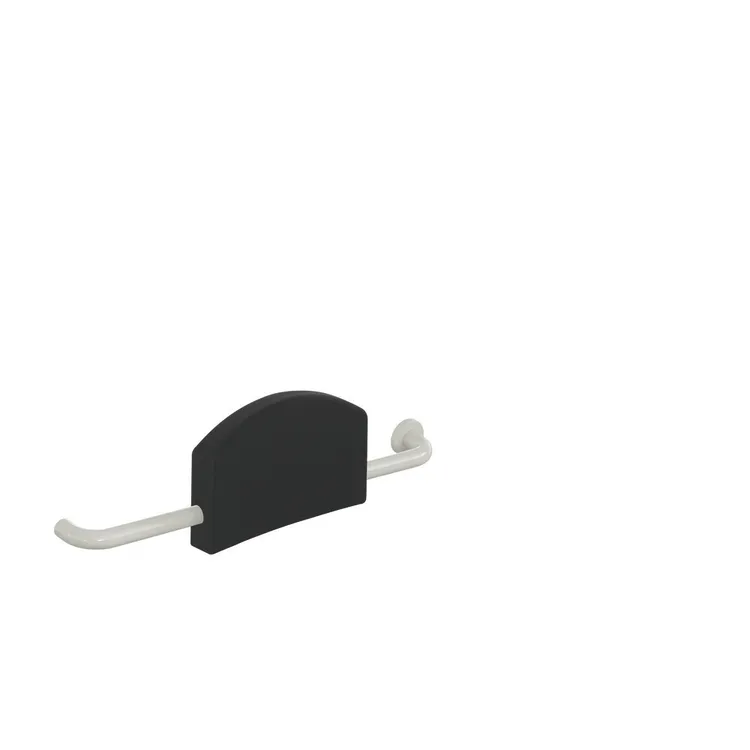

HEWI Range 801 Backrest rail
attached padded backrest with both sides, bent at right angles rails and one sided fixing rose (supplied with fixing material BM211), fulfils the DIN 18040 requirements, with continuous, corrosion resistant steel core, right-hand version, centre-to-centre from 670 to 730 mm adjustable, 220 mm high and 150 mm deep, Backrest 350 mm wide, rail diameter 33 mm, rose diameter 70 mm, backpad made of black PUR, made of high-quality polyamide according to HEWI colour chart, wall specific HEWI fixing material to be ordered separately.
Show more attached padded backrest with both sides, bent at right angles rails and one sided fixing rose (supplied with fixing material BM211), fulfils the DIN 18040 requirements, with continuous, corrosion resistant steel core, right-hand version, centre-to-centre from 670 to 730 mm adjustable, 220 mm high and 150 mm deep, Backrest 350 mm wide, rail diameter 33 mm, rose diameter 70 mm, backpad made of black PUR, made of high-quality polyamide according to HEWI colour chart, wall specific HEWI fixing material to be ordered separately.
Current color: 97 (light grey)
EAN
4014884962473
article group
Backrest
Mounting distance
670 - 730 mm
Colour
Variant
one sided hinged support rail
Material Seat/ Backrest
PUR
Material
Polyamide
Range 801 Backrest rail
- padded backrest with right-angled rails attached on both sides and fixing roses
- serves as back support for toilet users
- with continuous, corrosion resistant steel core
- right-hand version
- one-sided installation on the wall with roses (left)
- one-sided installation on hinged support rails or stationary support rails with wall plate (right)
- can be adjusted on site
- 670 to 730 mm wide, 220 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 33 mm, rose diameter 70 mm
- backpad made of black PUR
- made of high-quality polyamide according to HEWI colour chart
- fulfils the DIN 18040 and ÖNORM B1600/1601 requirements
- padded backrest with right-angled rails attached on both sides and fixing roses
- serves as back support for toilet users
- with continuous, corrosion resistant steel core
- right-hand version
- one-sided installation on the wall with roses (left)
- one-sided installation on hinged support rails or stationary support rails with wall plate (right)
- can be adjusted on site
- 670 to 730 mm wide, 220 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 33 mm, rose diameter 70 mm
- backpad made of black PUR
- made of high-quality polyamide according to HEWI colour chart
- fulfils the DIN 18040 and ÖNORM B1600/1601 requirements
