Article number 805.51.926R 92

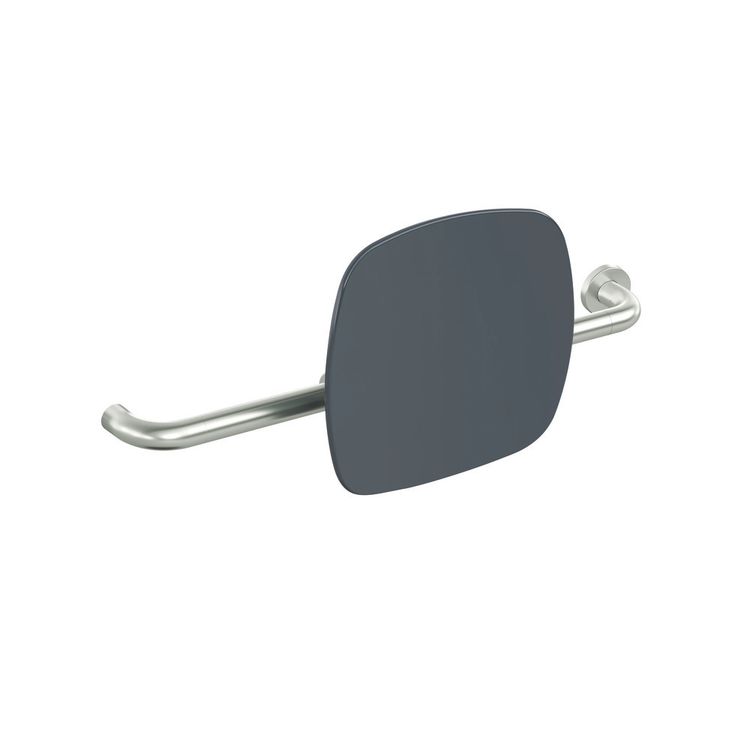

HEWI Backrest rail
stainless steel, satin finished, backrest made of synthetic material in HEWI colours 98 (signal white), 92 (anthracite grey) and 90 (jet black), width 650 to 750 mm, 150 mm deep, backrest 334 mm high and 370 mm wide, rail diameter 33 mm, one-sided installation on the wall with roses (left), one-sided installation on HEWI hinged support rails or stationary support rails with wall plate (right), fulfils the DIN 18040 and ÖNORM B1600/1601 requirements.
Show more
stainless steel, satin finished, backrest made of synthetic material in HEWI colours 98 (signal white), 92 (anthracite grey) and 90 (jet black), width 650 to 750 mm, 150 mm deep, backrest 334 mm high and 370 mm wide, rail diameter 33 mm, one-sided installation on the wall with roses (left), one-sided installation on HEWI hinged support rails or stationary support rails with wall plate (right), fulfils the DIN 18040 and ÖNORM B1600/1601 requirements.
Current color: 92 (anthracite grey)
EAN
4014885635529
Mounting distance
650 - 750 mm
Colour
Variant
one sided hinged support rail
Material Seat/ Backrest
Synthetic material
Material
Stainless steel
Back rest, Series 801
- back rest with right-angled rods and fixing rosettes attached on both sides
- serves to support the back on the WC
- Right-hand version
- mounted on one side on the wall with rosettes (left)
- mounted on one side on hinged support handles or wall support handles with wall plate (right)
- adjustable on site
- 650 to 750 mm wide, 150 mm deep, back rest 334 mm high and 370 mm wide, rod diameter 33 mm, rosette diameter 70 mm
- back rest made of synthetic material in HEWI colours 98 (signal white), 92 (anthracite grey) and 90 (jet black)
- Connection made of high-quality stainless steel, matt finish
- meets the requirements according to DIN 18040 and ÖNORM B1600/1601
- back rest with right-angled rods and fixing rosettes attached on both sides
- serves to support the back on the WC
- Right-hand version
- mounted on one side on the wall with rosettes (left)
- mounted on one side on hinged support handles or wall support handles with wall plate (right)
- adjustable on site
- 650 to 750 mm wide, 150 mm deep, back rest 334 mm high and 370 mm wide, rod diameter 33 mm, rosette diameter 70 mm
- back rest made of synthetic material in HEWI colours 98 (signal white), 92 (anthracite grey) and 90 (jet black)
- Connection made of high-quality stainless steel, matt finish
- meets the requirements according to DIN 18040 and ÖNORM B1600/1601
Downloads
Documents
| Ausschreiben.de | Link | |
| BIM | Link | |
| Colour Chart | Link |
Backrest
Article number 805.51.926R 92
