Article number 900.51.900XA 98

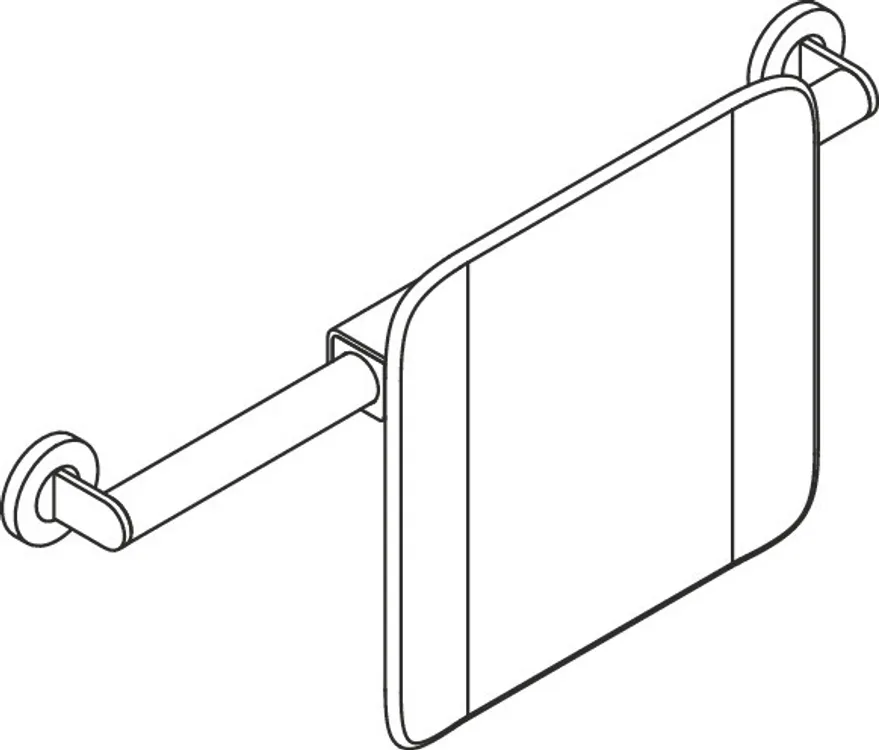

HEWI Backrest rail
connection made of stainless steel, matt satin finish surface, backrest made of synthetic material in HEWI colours 98 (signal white) or 92 (anthracite grey), centre-to-centre of 582 bis 682 mm adjustable on site, depth 150 mm, for wall mounting, meets the requirements according to DIN 18040 and ÖNORM B1600/1601.
Show more
connection made of stainless steel, matt satin finish surface, backrest made of synthetic material in HEWI colours 98 (signal white) or 92 (anthracite grey), centre-to-centre of 582 bis 682 mm adjustable on site, depth 150 mm, for wall mounting, meets the requirements according to DIN 18040 and ÖNORM B1600/1601.
Current color: 98 (signal white)
EAN
4014885539230
Mounting distance
582 - 682 mm
Colour
Variant
without hinged support rails
Material Seat/ Backrest
Synthetic material
Material
Stainless steel
Backrest rail, System 900
- backrest with fixing rails with roses on both sides
- serves as back support for toilet users
- for wall mounting
- 330 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 32 mm, tube thickness 2 mm
- Centre-to-centre from 582 to 682 mm, adjustable on site
- backrest made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey)
- connection made of high-quality stainless steel, satin
- including non-corrosive and tested HEWI fixing material
- fulfils the DIN 18040 and ÖNORM B1600/1601 requirements
- backrest with fixing rails with roses on both sides
- serves as back support for toilet users
- for wall mounting
- 330 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 32 mm, tube thickness 2 mm
- Centre-to-centre from 582 to 682 mm, adjustable on site
- backrest made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey)
- connection made of high-quality stainless steel, satin
- including non-corrosive and tested HEWI fixing material
- fulfils the DIN 18040 and ÖNORM B1600/1601 requirements
Design awards
Awarded by
Backrest
Article number 900.51.900XA 98
