meets the requirements of BS standard
Article number 900.51.90540 98
HEWI Backrest rail, System 900
backrest with fixing rails with roses on both sides, 330 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 32 mm, tube thickness 2 mm, Centre-to-centre from 478 to 578 mm, adjustable on site, backrest made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey), connection made of high-quality stainless steel, Surface chrome, including non-corrosive fixing material, fulfils the requirements to DIN 18040 and ÖNORM B1600/1601 and British-Standard BS 8300:2009+A1:2010/Doc M.
Show more
backrest with fixing rails with roses on both sides, 330 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 32 mm, tube thickness 2 mm, Centre-to-centre from 478 to 578 mm, adjustable on site, backrest made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey), connection made of high-quality stainless steel, Surface chrome, including non-corrosive fixing material, fulfils the requirements to DIN 18040 and ÖNORM B1600/1601 and British-Standard BS 8300:2009+A1:2010/Doc M.
Current color: 98 (signal white)
EAN
4014885539414
Befestigungsabstand
478 - 578 mm
Colour
Variant
without hinged support rails
Material
Chrome
Material Seat/ Backrest
Synthetic material

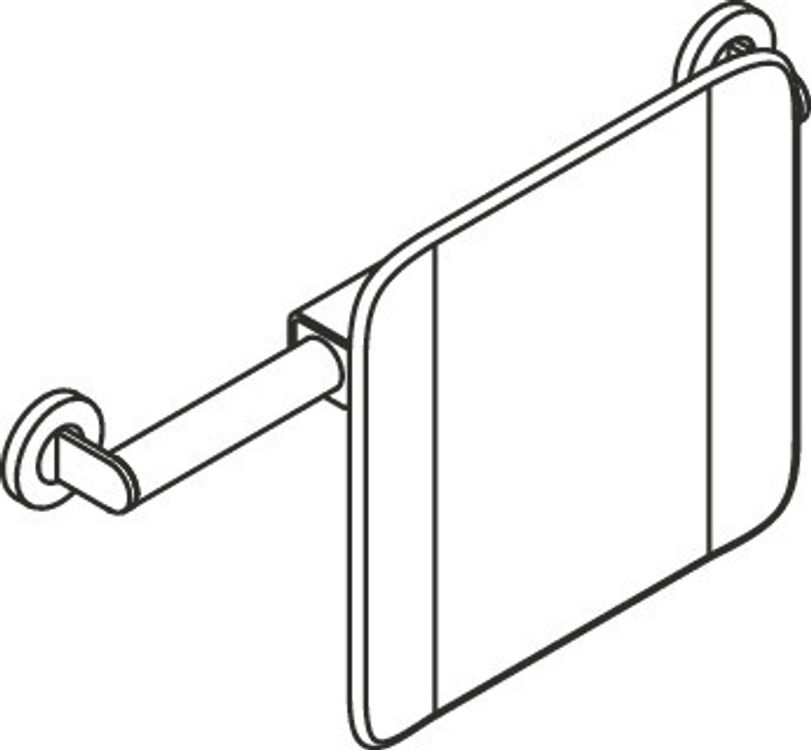

Backrest rail, System 900
- backrest with fixing rails with roses on both sides
- serves as back support for toilet users
- for wall mounting
- 330 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 32 mm, tube thickness 2 mm
- Centre-to-centre from 478 to 578 mm, adjustable on site
- backrest made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey)
- connection made of high-quality stainless steel, surface chrome
- including non-corrosive and tested HEWI fixing material
- fulfils the requirements according to DIN 18040 and ÖNORM B1600/1601
- fulfils the requirements to Britsh-Standard BS 8300:2009+A1:2010/Doc M.
- backrest with fixing rails with roses on both sides
- serves as back support for toilet users
- for wall mounting
- 330 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 32 mm, tube thickness 2 mm
- Centre-to-centre from 478 to 578 mm, adjustable on site
- backrest made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey)
- connection made of high-quality stainless steel, surface chrome
- including non-corrosive and tested HEWI fixing material
- fulfils the requirements according to DIN 18040 and ÖNORM B1600/1601
- fulfils the requirements to Britsh-Standard BS 8300:2009+A1:2010/Doc M.
Backrest
meets the requirements of BS standard
Article number 900.51.90540 98
