meets the requirements of BS standard
Article number 900.51.90660 ER

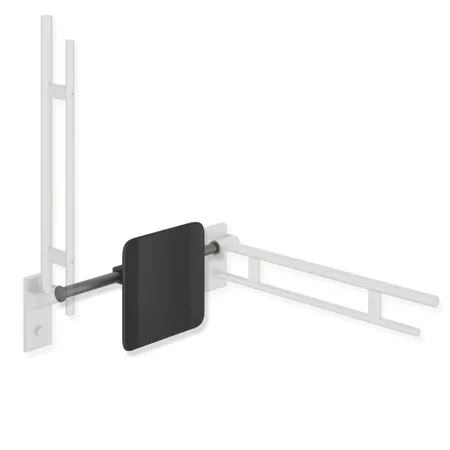

HEWI Backrest rail, System 900
backrest with fixing rails on both sides, for fitting onto hinged support rails, design (A) from the System 900, 330 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 32 mm, tube thickness 2 mm, centre-to-centre from 486 to 586 mm (clear dimension between the rails of the hinged support rails 548-648 mm) adjustable on site, connection made of high-quality stainless steel, powder-coated in the HEWI colour CV (matt black) and ER (matt dark grey pearl mica) with a black backrest or powder-coated in the HEWI colour AS (matt white) with a white backrest, including non-corrosive fixing material, fulfils the requirements to British-Standard BS 8300:2009 (+A1:2010)/Doc M.
Show more backrest with fixing rails on both sides, for fitting onto hinged support rails, design (A) from the System 900, 330 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 32 mm, tube thickness 2 mm, centre-to-centre from 486 to 586 mm (clear dimension between the rails of the hinged support rails 548-648 mm) adjustable on site, connection made of high-quality stainless steel, powder-coated in the HEWI colour CV (matt black) and ER (matt dark grey pearl mica) with a black backrest or powder-coated in the HEWI colour AS (matt white) with a white backrest, including non-corrosive fixing material, fulfils the requirements to British-Standard BS 8300:2009 (+A1:2010)/Doc M.
EAN
4014885645085
article group
Backrest
Mounting distance
548 - 648 mm
Colour
ER (dk grey-black matt)
Wall plate
Design A
Variant
both sides hinged support rails
Material Seat/ Backrest
Synthetic material
Material
Powder-coated
This article is also available in special colours.
Backrest rail, System 900
- backrest with fixing rails on both sides
- serves as back support for toilet users
- mounting onto hinged support rails, design (A) from the System 900
- 330 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 32 mm, tube thickness 2 mm
- centre-to-centre from 486 to 586 mm (clear dimension between the rails of the hinged support rails 548-648 mm) adjustable on site
- connection made of high-quality stainless steel, powder-coated in the HEWI colour CV (matt black) and ER (matt dark grey pearl mica) with a black backrest or powder-coated in the HEWI colour AS (matt white) with a white backrest
- including non-corrosive and tested HEWI fixing material
- fulfils the requirements to Britsh-Standard BS 8300:2009 (+A1:2010)/Doc M.
- backrest with fixing rails on both sides
- serves as back support for toilet users
- mounting onto hinged support rails, design (A) from the System 900
- 330 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 32 mm, tube thickness 2 mm
- centre-to-centre from 486 to 586 mm (clear dimension between the rails of the hinged support rails 548-648 mm) adjustable on site
- connection made of high-quality stainless steel, powder-coated in the HEWI colour CV (matt black) and ER (matt dark grey pearl mica) with a black backrest or powder-coated in the HEWI colour AS (matt white) with a white backrest
- including non-corrosive and tested HEWI fixing material
- fulfils the requirements to Britsh-Standard BS 8300:2009 (+A1:2010)/Doc M.
