Article number 900.34.002XA

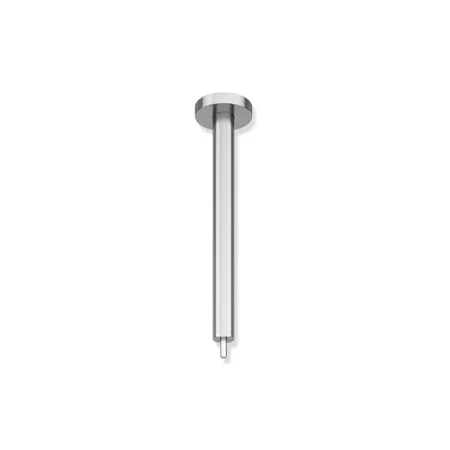

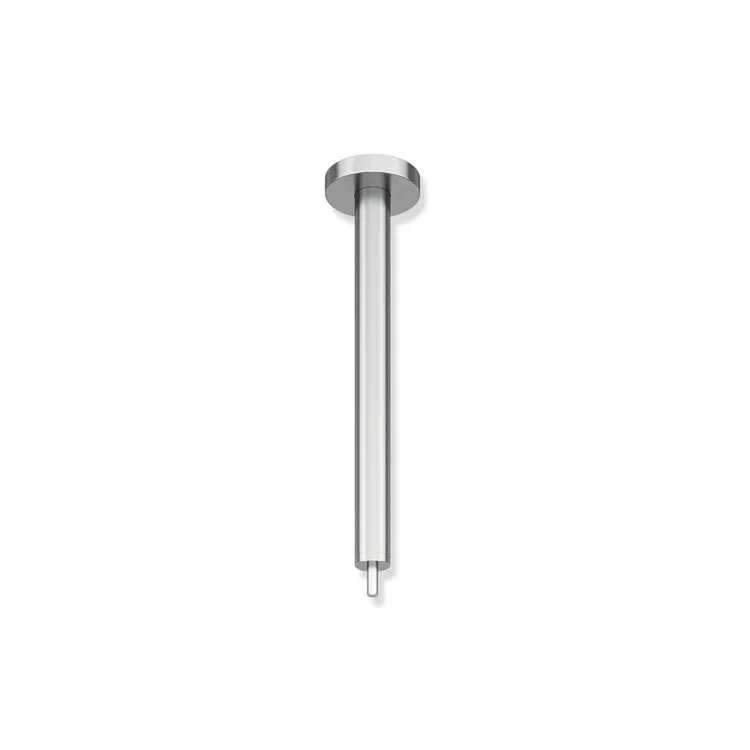

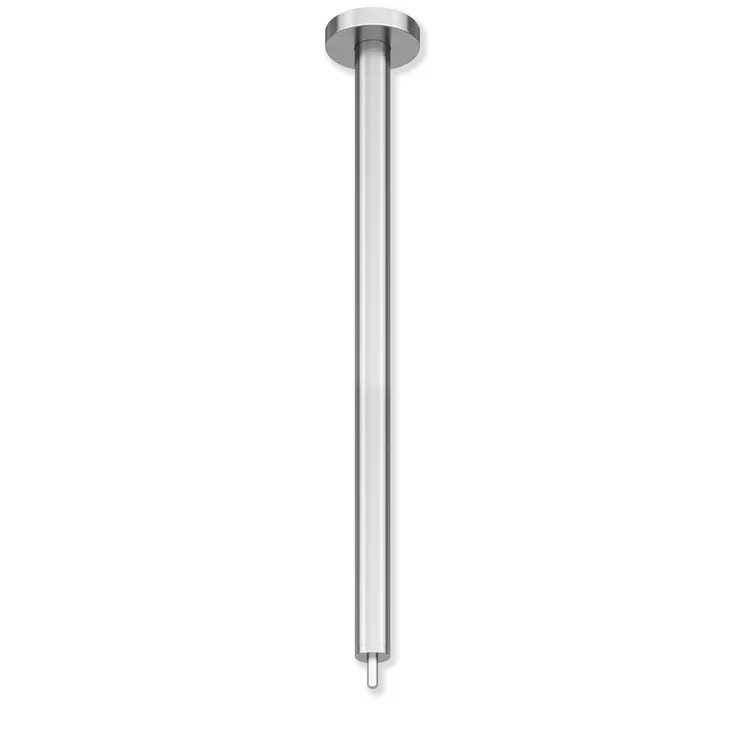

HEWI Ceiling hanger, System 900
straight rail with mounting rose, made of high-quality stainless steel, satin surface, length 500 mm, rail diameter 25 mm, rose diameter 70 mm, can be shortened at the rose to 200 mm on site, fixed onto the ceiling with rose, including non-corrosive fixing material.
Show more straight rail with mounting rose, made of high-quality stainless steel, satin surface, length 500 mm, rail diameter 25 mm, rose diameter 70 mm, can be shortened at the rose to 200 mm on site, fixed onto the ceiling with rose, including non-corrosive fixing material.
EAN
4014885526520
article group
Ceiling support
Diameter bar
25 mm
Size
500 mm
Material
Stainless steel
Ceiling hanger, System 900

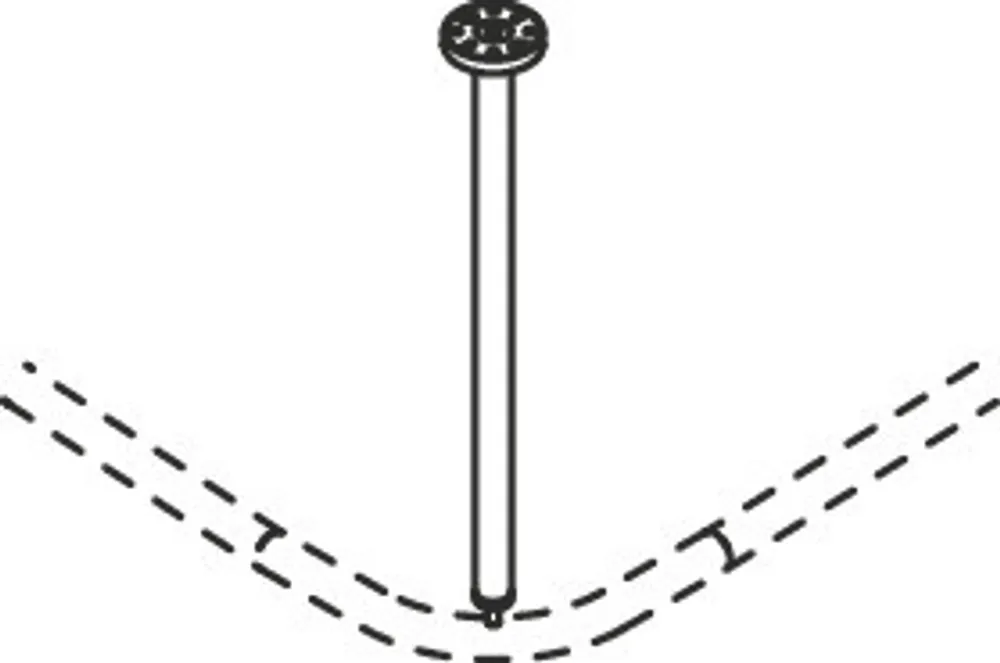

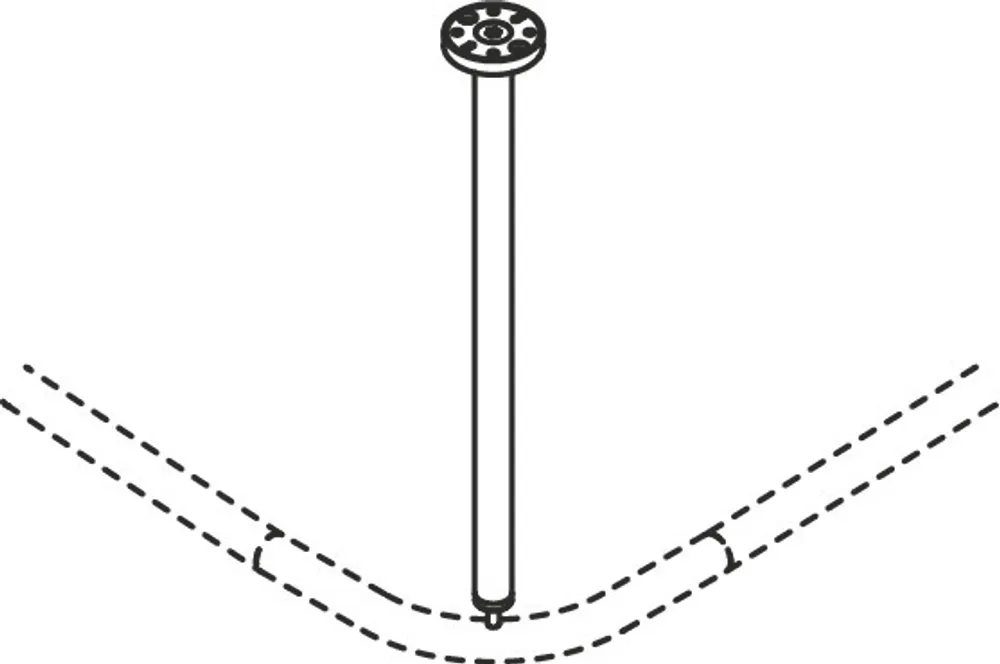

- straight rail with mounting rose
- for mounting curtain rails
- made of high-quality stainless steel, satin surface
- length 500 mm

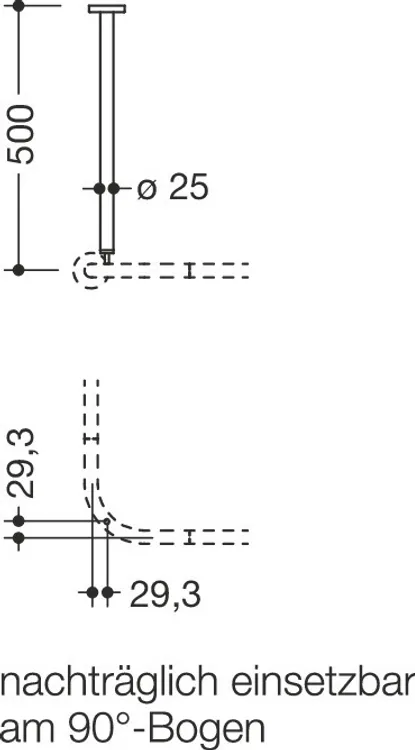

- rail diameter 25 mm, rose diameter 70 mm
- can be shortened at the rose to 200 mm on site
- fixing on the ceiling with rose
- including non-corrosive fixing material and sealing tape for sealing the drilling points
- straight rail with mounting rose
- for mounting curtain rails
- made of high-quality stainless steel, satin surface
- length 500 mm
- rail diameter 25 mm, rose diameter 70 mm
- can be shortened at the rose to 200 mm on site
- fixing on the ceiling with rose
- including non-corrosive fixing material and sealing tape for sealing the drilling points
Design awards
Awarded by
Downloads
| 2D drawing | DXF | |
| 3DF | DXF | |
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions |
Documents
| Ausschreiben.de | Link | |
| BIM | Link | |
| Colour Chart | Link |
