{LED
Article number 950.01.26040}

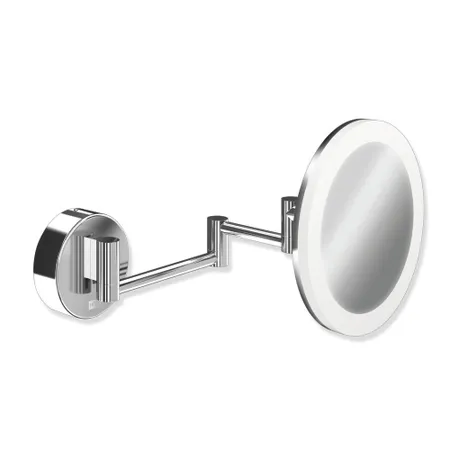

HEWI Cosmetic mirror, illuminated
concave on one side, set in a chrome-plated metal frame, round, diameter 200 mm, with all-round LED lighting, wall connection high quality chrome-plated, CE and UKCA marking according to EMC 2014/30/EU, This product contains a light source of energy efficiency class F, protection class I, rating IP44.
Show more
concave on one side, set in a chrome-plated metal frame, round, diameter 200 mm, with all-round LED lighting, wall connection high quality chrome-plated, CE and UKCA marking according to EMC 2014/30/EU, This product contains a light source of energy efficiency class F, protection class I, rating IP44.
EAN
4014885619321
With LED
Yes
Kind
- LED mirrors
- Make-up mirror
Material
Chrome
Cosmetic mirror
- round, illuminated
- LED lights all round, 20 mm wide
- mirror is concave on one side
- 5x magnification
- mirror diameter 200 mm, can be turned and tilted
- flex-LED 12 V, ca. 4.5 Watt
- two light colours, adjustable, warm white approx. 3000 Kelvin or cold white approx. 5700 Kelvin
- in a chrome-plated metal frame
- diameter of the mirror surface 160 mm
- on a double-joint arm, mobile, length approx. 400 mm
- direct connection without a cable, 220-240 V
- on and off switch behind the mirror
- CE and UKCA marking according to EMC Directive 2014/30/EU
- protection class I, IP rating IP44
- This product contains a light source of energy efficiency class F
- for wall mounting, concealed 3-point attachment
- wall attachment diameter 100 mm, depth approx. 33 mm
- including non-corrosive HEWI attachment material
- high-quality chrome plating
- suitable for power supplies with voltages between 200 and 240 V, and grid frequencies of between 50 and 60 Hz
- round, illuminated
- LED lights all round, 20 mm wide
- mirror is concave on one side
- 5x magnification
- mirror diameter 200 mm, can be turned and tilted
- flex-LED 12 V, ca. 4.5 Watt
- two light colours, adjustable, warm white approx. 3000 Kelvin or cold white approx. 5700 Kelvin
- in a chrome-plated metal frame
- diameter of the mirror surface 160 mm
- on a double-joint arm, mobile, length approx. 400 mm
- direct connection without a cable, 220-240 V
- on and off switch behind the mirror
- CE and UKCA marking according to EMC Directive 2014/30/EU
- protection class I, IP rating IP44
- This product contains a light source of energy efficiency class F
- for wall mounting, concealed 3-point attachment
- wall attachment diameter 100 mm, depth approx. 33 mm
- including non-corrosive HEWI attachment material
- high-quality chrome plating
- suitable for power supplies with voltages between 200 and 240 V, and grid frequencies of between 50 and 60 Hz
Downloads
| 2D drawing | DXF | |
| 3DF | DXF | |
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions |
Documents
| BIM | Link | |
| Colour Chart | Link |
