{Mounting height 680 mm, for 801.50....
Article number 950.50.027XA 99}

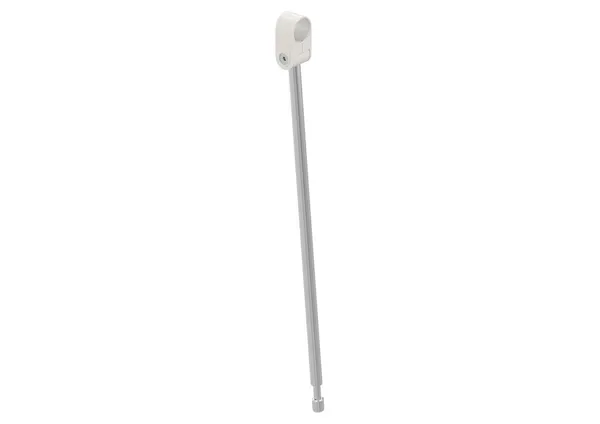

HEWI Floor support
made of stainless steel, satin finish, connection made of high-quality polyamide, for retrofitting on hinged support rails and stationary support rails 801.50..., for mounting height 680 mm, produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices.
Show more
made of stainless steel, satin finish, connection made of high-quality polyamide, for retrofitting on hinged support rails and stationary support rails 801.50..., for mounting height 680 mm, produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices.
Current color: 99 (pure white)
EAN
4014885497097
Version
suitable for both sides
Colour
Material
Stainless steel
Floor support
- vertical floor support for retrofitting on hinged support rails and stationary support rails 801.50....
- for mounting height 680 mm
- easy installation
- connection made of high-quality polyamide according to HEWI colour chart
- support made of high-quality stainless steel with satin finish

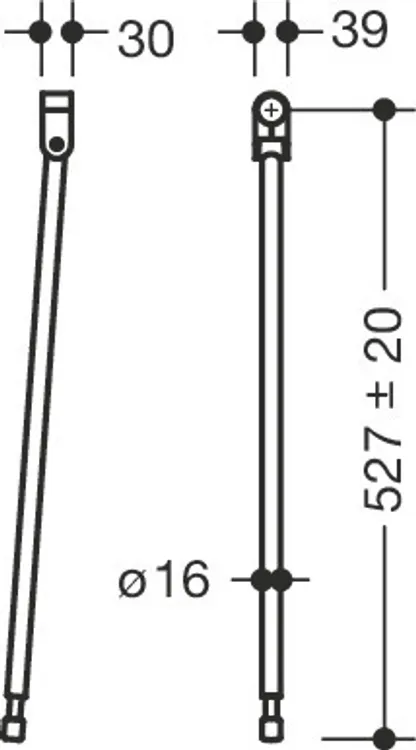

- vertical length 527 mm
- height adjustment within +/- 20 mm range possible
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
- vertical floor support for retrofitting on hinged support rails and stationary support rails 801.50....
- for mounting height 680 mm
- easy installation
- connection made of high-quality polyamide according to HEWI colour chart
- support made of high-quality stainless steel with satin finish
- vertical length 527 mm
- height adjustment within +/- 20 mm range possible
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
Design awards
Awarded by
Downloads
| 2D drawing | DXF | |
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions |
Documents
| Colour Chart | Link |
