{Article number 900.51.20260 ER}

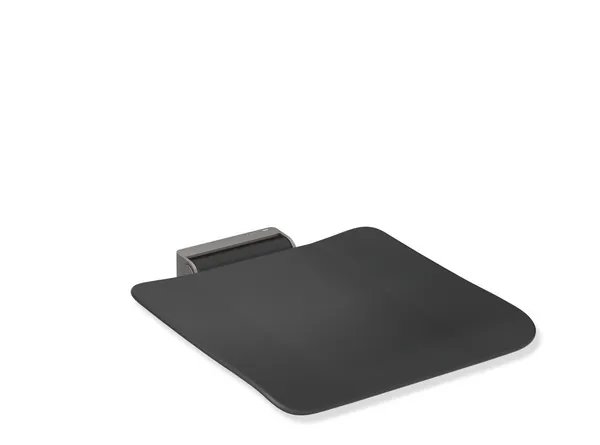

HEWI Hinged seat, System 900
construction consisting of wall bracket and continuous seat, slip-resistant, textured seat made of synthetic material in HEWI colours 98 (signal white) and 90 (jet black), reinforcement of the seat made of aluminium, powder coated in the colour of the seat, wall bracket made of high-quality stainless steel, powder-coated in the HEWI colour CV (matt black) and ER (matt dark grey pearl mica) with a black seat or powder-coated in the HEWI colour AS (matt white) with a white seat, seat depth when folded up 77 mm, weight capacity up to 150 kg, 450 mm wide, 525 mm deep, 112 mm high, seat 450 mm wide and 450 mm deep, for mounting with non-corrosive HEWI fixing material (to be ordered separately).
Fulfils the DIN 18040 requirements, ÖNORM B1600/1601 and SIA 500.
Show more
construction consisting of wall bracket and continuous seat, slip-resistant, textured seat made of synthetic material in HEWI colours 98 (signal white) and 90 (jet black), reinforcement of the seat made of aluminium, powder coated in the colour of the seat, wall bracket made of high-quality stainless steel, powder-coated in the HEWI colour CV (matt black) and ER (matt dark grey pearl mica) with a black seat or powder-coated in the HEWI colour AS (matt white) with a white seat, seat depth when folded up 77 mm, weight capacity up to 150 kg, 450 mm wide, 525 mm deep, 112 mm high, seat 450 mm wide and 450 mm deep, for mounting with non-corrosive HEWI fixing material (to be ordered separately).
Fulfils the DIN 18040 requirements, ÖNORM B1600/1601 and SIA 500.
EAN
4014885644941
Colour
ER (dk grey-black matt)
Assembly
fixed
Material Seat/ Backrest
Synthetic material
Material
Powder-coated
This article is also available in special colours.
Hinged seat, System 900
- construction consisting of wall bracket and continuous seat
- slip-resistant, textured seat made of synthetic material in HEWI colours 98 (signal white) and 90 (jet black)
- reinforcement of the seat made of aluminium, powder coated in the colour of the seat
- wall bracket made of high-quality stainless steel, powder-coated in the HEWI colour CV (matt black) and ER (matt dark grey pearl mica) with a black seat or powder-coated in the HEWI colour AS (matt white) with a white seat
- seat can be folded up to save space
- seat depth when folded up 77 mm
- weight capacity up to 150 kg
- 450 mm wide, 525 mm deep and 112 mm high
- seat 450 mm wide and 450 mm deep
- for mounting with non-corrosive and tested HEWI fixing materials for different wall systems (to be ordered separately)
- sealing tape and sealing discs for sealing the fixing points according to DIN 18534 are included in the scope of delivery
- fulfils the DIN 18040, ÖNORM B1600/1601 and SIA 500 requirements
- construction consisting of wall bracket and continuous seat
- slip-resistant, textured seat made of synthetic material in HEWI colours 98 (signal white) and 90 (jet black)
- reinforcement of the seat made of aluminium, powder coated in the colour of the seat
- wall bracket made of high-quality stainless steel, powder-coated in the HEWI colour CV (matt black) and ER (matt dark grey pearl mica) with a black seat or powder-coated in the HEWI colour AS (matt white) with a white seat
- seat can be folded up to save space
- seat depth when folded up 77 mm
- weight capacity up to 150 kg
- 450 mm wide, 525 mm deep and 112 mm high
- seat 450 mm wide and 450 mm deep
- for mounting with non-corrosive and tested HEWI fixing materials for different wall systems (to be ordered separately)
- sealing tape and sealing discs for sealing the fixing points according to DIN 18534 are included in the scope of delivery
- fulfils the DIN 18040, ÖNORM B1600/1601 and SIA 500 requirements
Design awards
Awarded by
Downloads
| 2D drawing | DXF | |
| 3DF | DXF | |
| Drilling pattern | JPG | |
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions |
Documents
| BIM | Link | |
| Colour Chart | Link | |
| Installation video 1 | Link |
