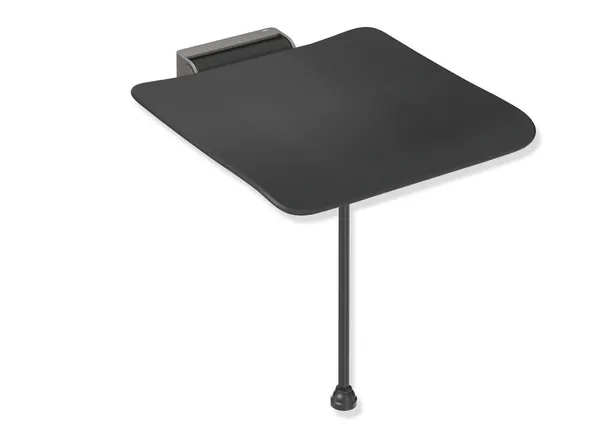

Hinged seat

with floor support, seat 450 x 450, powder-coated
Article number 900.51.20560 ER

HEWI folding seat
wall bracket made of stainless steel, chrome, Powder-coated, Seat made of textured plastic, Seat 450 mm wide, 450 mm deep, with floor support for seat height 450-500 mm, powder coated in the colour of the seat, tested up to 200 kg when used with HEWI fixing material, Recommended maximum weight of the user: 150 kg, fulfils the DIN 18040 requirements, ÖNORM B1600/1601 and SIA 500.

Downloads and documents

Product data sheet

Add to the comparison list comparison list

EAN

4014885644972

article group

Hinged seat

Function

hinged

Colour

ER (dk grey-black matt)

Variant

with floor support

Assembly

fixed

Material Seat/ Backrest

Synthetic material

Material

Powder-coated

This article is also available in special colours.

Hinged seat, System 900
- Construction consisting of wall console and continuous seat surface
- anti-slip, textured plastic seat surface in HEWI colours 98 (signal white) and 90 (jet black)
- Aluminium seat reinforcement, powder coated in the colour of the seat
- Wall bracket made of high-quality stainless steel, powder-coated in HEWI colour CV (deep matt black) and ER (deep matt dark grey pearl mica) with black seat surface or powder-coated in HEWI colour AS (deep matt white) with white seat surface
- Seat can be folded up to save space
- Seat depth when folded up 77 mm
- with floor support for seat height 450-500 mm, powder coated in the colour of the seat
- 450 mm wide, 525 mm deep and 112 mm high
- Seat 450 mm wide and 450 mm deep
- for mounting with non-corrosive and tested HEWI fixing material for different wall systems (to be ordered separately).
- Sealing tape and sealing rods for sealing the mounting points according to DIN 18534 are included in the delivery
- tested up to 200 kg when used with HEWI fixing material
- Recommended maximum weight of the user: 150 kg
- Fulfils the DIN 18040 requirements, ÖNORM B1600/1601 and SIA 500
