with hygiene cutout and floor support, seat 450 x 450, satin finished
Article number 900.51.214XA 98

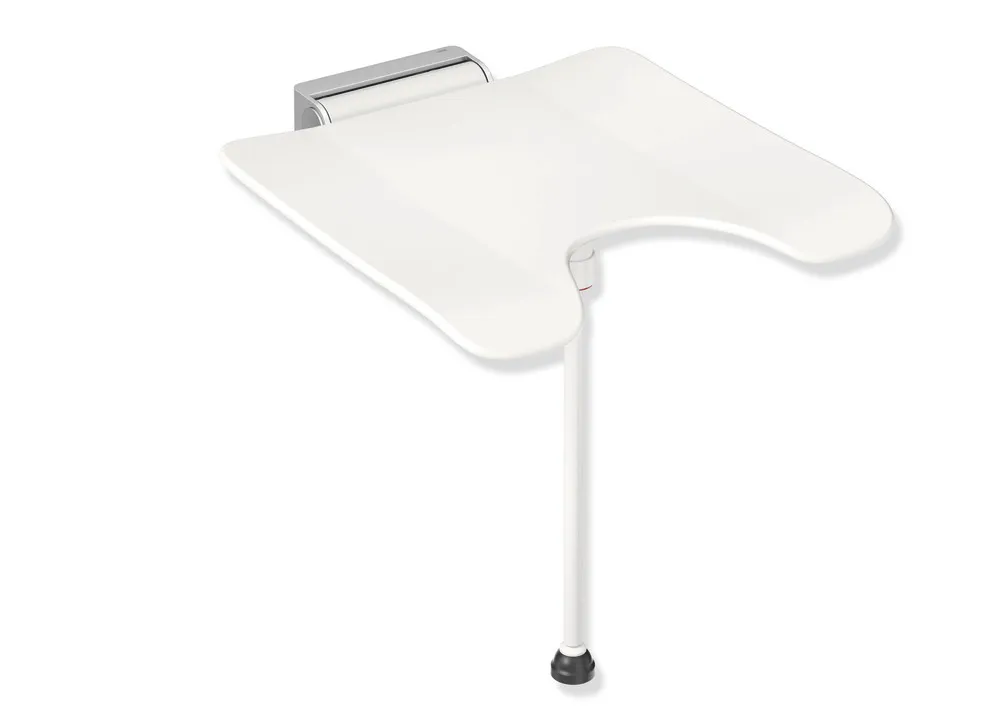

HEWI Hinged seat, System 900
construction consisting of wall bracket and continuous seat, slip-resistant, textured seat made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey), reinforcement of the seat made of aluminium, powder coated in the colour of the seat, wall bracket made of stainless steel, chrome, satin, seat depth when folded up 77 mm, weight capacity up to 150 kg, with floor support for seat height 450-500 mm, powder coated in the colour of the seat, 450 mm wide, 525 mm deep, 112 mm high, seat 450 mm wide and 450 mm deep, for mounting with non-corrosive HEWI fixing material (to be ordered separately)
Fulfils the DIN 18040 requirements, ÖNORM B1600/1601 and SIA 500.
Show more
construction consisting of wall bracket and continuous seat, slip-resistant, textured seat made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey), reinforcement of the seat made of aluminium, powder coated in the colour of the seat, wall bracket made of stainless steel, chrome, satin, seat depth when folded up 77 mm, weight capacity up to 150 kg, with floor support for seat height 450-500 mm, powder coated in the colour of the seat, 450 mm wide, 525 mm deep, 112 mm high, seat 450 mm wide and 450 mm deep, for mounting with non-corrosive HEWI fixing material (to be ordered separately)
Fulfils the DIN 18040 requirements, ÖNORM B1600/1601 and SIA 500.
Current color: 98 (signal white)
EAN
4014885606734
Colour
Variant
with floor support
Material
Stainless steel
Material Seat/ Backrest
Synthetic material
Assembly
fixed
Hinged seat, System 900
- construction consisting of wall bracket and continuous seat
- slip-resistant, textured seat made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey)
- reinforcement of the seat made of aluminium, powder coated in the colour of the seat
- wall bracket made of stainless steel, satin
- seat with hygiene cutout can be folded up to save space
- seat depth when folded up 77 mm
- weight capacity up to 150 kg
- with floor support for seat height 450-500 mm, powder coated in the colour of the seat
- 450 mm wide, 525 mm deep and 112 mm high
- seat 450 mm wide and 450 mm deep
- for mounting with non-corrosive and tested HEWI fixing materials for different wall systems (to be ordered separately)
- sealing tape and sealing discs for sealing the fixing points according to DIN 18534 are included in the scope of delivery
- fulfils the DIN 18040, ÖNORM B1600/1601 and SIA 500 requirements
- construction consisting of wall bracket and continuous seat
- slip-resistant, textured seat made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey)
- reinforcement of the seat made of aluminium, powder coated in the colour of the seat
- wall bracket made of stainless steel, satin
- seat with hygiene cutout can be folded up to save space
- seat depth when folded up 77 mm
- weight capacity up to 150 kg
- with floor support for seat height 450-500 mm, powder coated in the colour of the seat
- 450 mm wide, 525 mm deep and 112 mm high
- seat 450 mm wide and 450 mm deep
- for mounting with non-corrosive and tested HEWI fixing materials for different wall systems (to be ordered separately)
- sealing tape and sealing discs for sealing the fixing points according to DIN 18534 are included in the scope of delivery
- fulfils the DIN 18040, ÖNORM B1600/1601 and SIA 500 requirements
Design awards
Awarded byDownloads
2D drawing | DXF | |
3DF | DXF | |
Drilling pattern | JPG | |
Product data sheet | ||
Installation instructions | ||
Cleaning and Care Instructions |
Documents
Colour Chart | Link | |
Installation video 1 | Link |
Hinged seat
with hygiene cutout and floor support, seat 450 x 450, satin finished
Article number 900.51.214XA 98
