Article number 802.51.23860 SD
HEWI Hinged seat Premium
Stainless steel bracket, powder-coated in the HEWI colours signal white, glossy with seat/backrest surface made of high-quality PUR/integral rigid foam in SD (signal white), matt) or console in anthracite, glossy with seat/backrest surface in DR (anthracite, matt) with high-gloss chrome-plated design elements, High-quality plastic surface and scratch-resistant powder coating, Seat 452 mm wide, 450 mm deep, with backrest and separately folding armrests, Seat with pubic cutout and water drainage, tested up to 200 kg when used with HEWI fixing material, Recommended maximum weight of the user: 150 kg, is produced in accordance with CE and UKCA Regulation (EU) 2017/745 on medical devices, fulfils the DIN 18040 requirements, ÖNORM B1600/1601 and SIA 500.
Show more
Stainless steel bracket, powder-coated in the HEWI colours signal white, glossy with seat/backrest surface made of high-quality PUR/integral rigid foam in SD (signal white), matt) or console in anthracite, glossy with seat/backrest surface in DR (anthracite, matt) with high-gloss chrome-plated design elements, High-quality plastic surface and scratch-resistant powder coating, Seat 452 mm wide, 450 mm deep, with backrest and separately folding armrests, Seat with pubic cutout and water drainage, tested up to 200 kg when used with HEWI fixing material, Recommended maximum weight of the user: 150 kg, is produced in accordance with CE and UKCA Regulation (EU) 2017/745 on medical devices, fulfils the DIN 18040 requirements, ÖNORM B1600/1601 and SIA 500.
EAN
4014885646143
Colour
SD (white polish-white matt)
Material Seat/ Backrest
PUR
Material
Powder-coated
Range 802 LifeSystem hinged seat Premium with pubic cutout
- Ergonomically shaped seat with backrest and armrests
- Used for safe sitting in the shower area
- high-quality plastic surface and scratch-resistant powder coating - seat can be folded up to save space
- maintenance-free, Permanently smooth-running joint
- 652 mm wide, 549 mm high, 516 mm deep
- 752 mm high and 130 mm deep when folded up
- seat 452 mm wide, 450 mm deep
- Seat with pubic cut-out and water drainage
- Stainless steel bracket, powder-coated in the HEWI colours signal white, glossy with seat/backrest surface made of high-quality PUR/integral rigid foam in SD (signal white), matt) or console in anthracite, glossy with seat/backrest surface in DR (anthracite, matt) with high-gloss chrome-plated design elements
- Armrests can be folded up and down separately
- for mounting with non-corrosive and tested HEWI fixing material for different wall systems (to be ordered separately).
- Sealing tape and sealing rods for sealing the mounting points according to DIN 18534 are included in the delivery
- tested up to 200 kg when used with HEWI fixing material
- Recommended maximum weight of the user: 150 kg
- is produced in accordance with CE and UKCA Regulation (EU) 2017/745 on medical devices
- Fulfils the DIN 18040 requirements, ÖNORM B1600/1601 and SIA 500
- Ergonomically shaped seat with backrest and armrests
- Used for safe sitting in the shower area
- high-quality plastic surface and scratch-resistant powder coating - seat can be folded up to save space
- maintenance-free, Permanently smooth-running joint
- 652 mm wide, 549 mm high, 516 mm deep
- 752 mm high and 130 mm deep when folded up
- seat 452 mm wide, 450 mm deep
- Seat with pubic cut-out and water drainage
- Stainless steel bracket, powder-coated in the HEWI colours signal white, glossy with seat/backrest surface made of high-quality PUR/integral rigid foam in SD (signal white), matt) or console in anthracite, glossy with seat/backrest surface in DR (anthracite, matt) with high-gloss chrome-plated design elements
- Armrests can be folded up and down separately
- for mounting with non-corrosive and tested HEWI fixing material for different wall systems (to be ordered separately).
- Sealing tape and sealing rods for sealing the mounting points according to DIN 18534 are included in the delivery
- tested up to 200 kg when used with HEWI fixing material
- Recommended maximum weight of the user: 150 kg
- is produced in accordance with CE and UKCA Regulation (EU) 2017/745 on medical devices
- Fulfils the DIN 18040 requirements, ÖNORM B1600/1601 and SIA 500
Design awards
Awarded by
Downloads
| 2D drawing | DXF | |

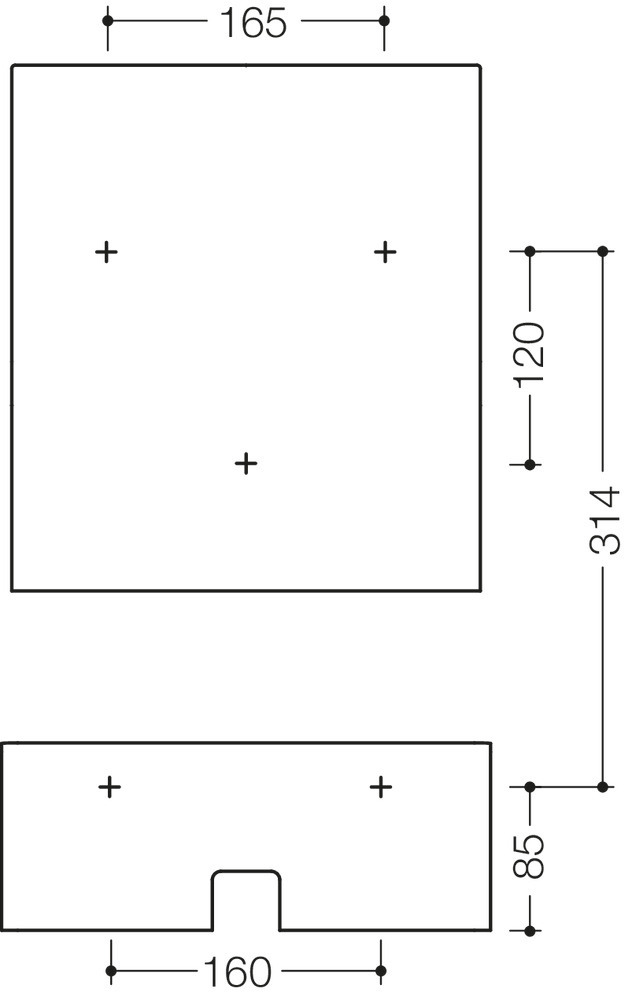

| Drilling pattern | JPG | |
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions |
Documents
| Ausschreiben.de | Link | |
| BIM | Link | |
| Colour Chart | Link | |
| Product video 1 | Link |
Hinged seat Premium
Article number 802.51.23860 SD
