Hinged seat R 380

Article number 950.51.22090 98

HEWI Hinged seat R 380
wall bracket made of metal, White powder-coated, Seat made of glass fibre-reinforced polyamide, Width 380 mm, Depth 405 mm, tested up to 200 kg when used with HEWI fixing material, Recommended maximum weight of the user: 150 kg.

Downloads and documents

Product data sheet

Add to the comparison list comparison list

EAN

4014884965665

article group

Hinged seat

Colour

98signal white

Assembly

fixed

Material Seat/ Backrest

Polyamide

Material

Powder-coated

Please note: When ordering please specify colour of the seat.
Supplied only with wall-specific HEWI fixing material.

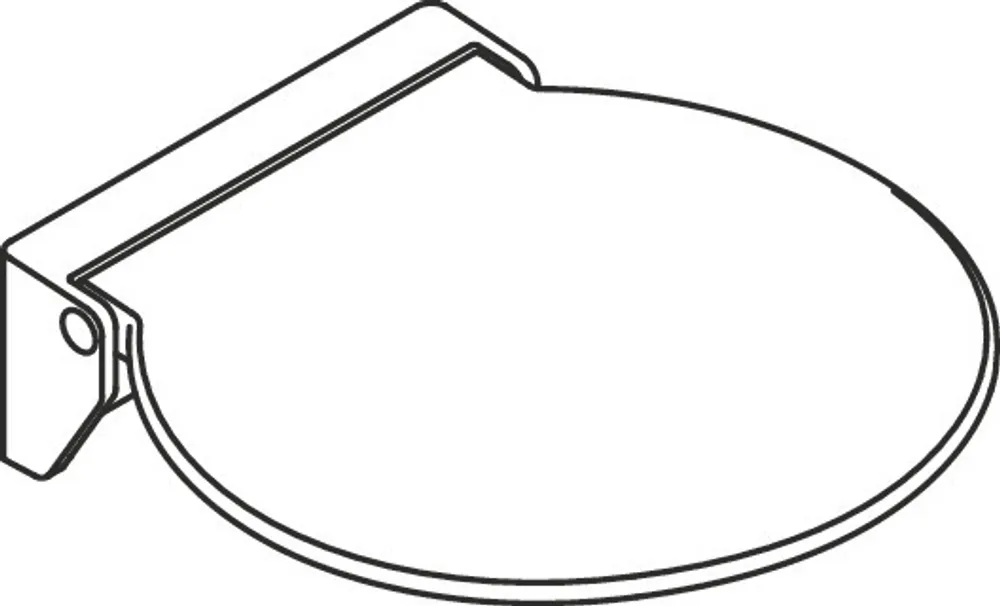

Hinged seat R 380
- Construction consisting of wall console and continuous seat surface
- Used for safe sitting in the shower area
- 380 mm wide, 405 mm deep and 107 mm high
- Metal wall bracket, White powder-coated
- Seat made of white, glass fibre reinforced polyamide
- Seat can be folded up
- Seat depth when folded up: 66 mm
- No struts and fastenings visible when folded up
- can be combined with backrest 950.51.02090 - wall mounting with wall-specific HEWI fixing material
- Sealing tape and sealing rods for sealing the mounting points according to DIN 18534 are included in the delivery
- tested up to 200 kg when used with HEWI fixing material
- Recommended maximum weight of the user: 150 kg
