Article number 801.50.2200

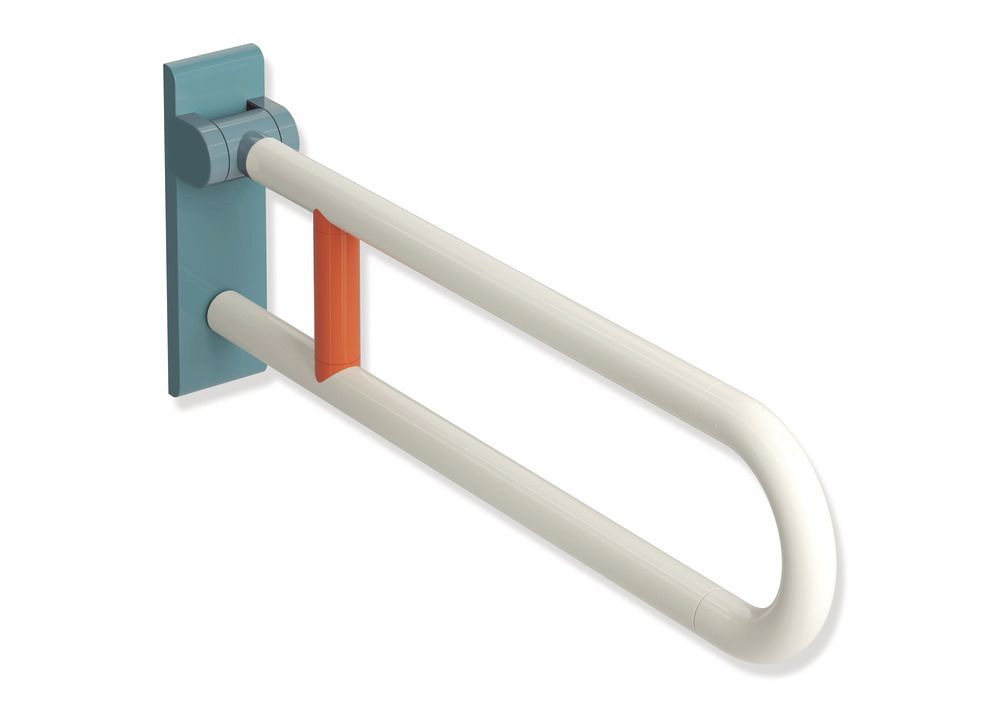

HEWI ICONIC folding support handle
Polyamide, high gloss, Three-coloured folding support handle, Cantilever: 99 (pure white), Wall plate: 55 (aqua blue), Support: 36 (coral), projection 850 mm , tested up to 150 kg when used with HEWI fixing material, Recommended maximum weight of the user: 150 kg, Produced in accordance with Regulation (EU) 2017/745 on medical devices, fulfils the DIN 18040 requirements, ÖNORM B1600/1601 and SIA 500.
Show more
Polyamide, high gloss, Three-coloured folding support handle, Cantilever: 99 (pure white), Wall plate: 55 (aqua blue), Support: 36 (coral), projection 850 mm , tested up to 150 kg when used with HEWI fixing material, Recommended maximum weight of the user: 150 kg, Produced in accordance with Regulation (EU) 2017/745 on medical devices, fulfils the DIN 18040 requirements, ÖNORM B1600/1601 and SIA 500.
EAN
4014885666967
Hilfsmittelnummer
04.40.05.1256
Function
hinged
Version
suitable for both sides
Size
850 mm
Variant
without additional function
Assembly
fixed
Material
Polyamide
Insert
Steel core
Series 801 ICONIC Hinged support rail
- Three-coloured folding support handle
- Made from high-gloss polyamide
- Cantilever: 99 (pure white), Wall plate: 55 (aqua blue), Support: 36 (coral)
- Two parallel rails, arranged on top of each other, bars joined together by a connecting arch
- is used for holding and supporting - with continuous, corrosion resistant steel core and wall plate made of polyamide with integrated steel core
- Can be folded upwards and folded downwards with braked movement
- Mounting on the wall with wall-specific HEWI mounting material (to be ordered separately)
Sealing tape for sealing the fixing points is included in the delivery
- Concealed mounting
- tested up to 150 kg when used with HEWI fixing material
- Recommended maximum weight of the user: 150 kg
- Projection 850 mm , Height 259 mm and width 78 mm , Rail 33 mm in diameter
- Toilet roll holder 801.50.011, - Toilet flushing mechanism (radio) 801.50.060 and floor supports 950.50.021XA and 950.50.023XA retrofittable
- Produced in accordance with Regulation (EU) 2017/745 on medical devices
- Fulfils the DIN 18040 requirements, ÖNORM B1600/1601 and SIA 500
- Three-coloured folding support handle
- Made from high-gloss polyamide
- Cantilever: 99 (pure white), Wall plate: 55 (aqua blue), Support: 36 (coral)
- Two parallel rails, arranged on top of each other, bars joined together by a connecting arch
- is used for holding and supporting - with continuous, corrosion resistant steel core and wall plate made of polyamide with integrated steel core
- Can be folded upwards and folded downwards with braked movement
- Mounting on the wall with wall-specific HEWI mounting material (to be ordered separately)
Sealing tape for sealing the fixing points is included in the delivery
- Concealed mounting
- tested up to 150 kg when used with HEWI fixing material
- Recommended maximum weight of the user: 150 kg
- Projection 850 mm , Height 259 mm and width 78 mm , Rail 33 mm in diameter
- Toilet roll holder 801.50.011, - Toilet flushing mechanism (radio) 801.50.060 and floor supports 950.50.021XA and 950.50.023XA retrofittable
- Produced in accordance with Regulation (EU) 2017/745 on medical devices
- Fulfils the DIN 18040 requirements, ÖNORM B1600/1601 and SIA 500
