Article number 900.50B218XA 98}

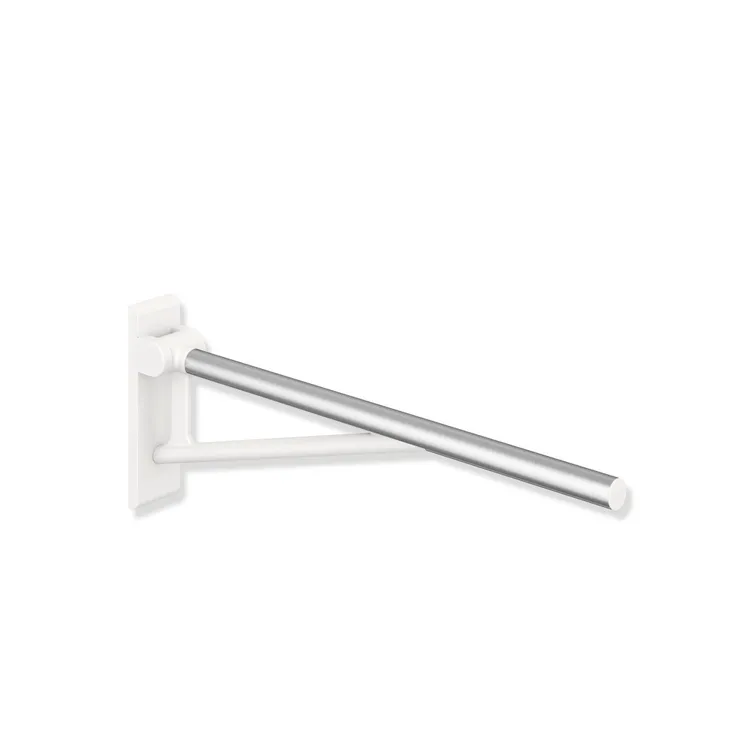

HEWI Hinged support rail
upper rail made of metal in stainless steel look, wall plate and outrigger made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey), projection 850 mm, capacity up to 100 kg, produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices, fulfils DIN 18040 requirements, ÖNORM B1600/1601 and SIA 500.
Show more
upper rail made of metal in stainless steel look, wall plate and outrigger made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey), projection 850 mm, capacity up to 100 kg, produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices, fulfils DIN 18040 requirements, ÖNORM B1600/1601 and SIA 500.
Current color: 98 (signal white)
EAN
4014885651062
Function
hinged
Version
suitable for both sides
Size
850 mm
Colour
Variant
without additional function
Assembly
fixed
Material
Metal, stainless steel look
Swing-up grab bar, System 900
- with a horizontal, round handle level
- for holding, supporting and raising the patient
- can be folded upwards and folded downwards with braking
- permanently smooth-running, low-maintenance joint, preset in the factory
- 850 mm projection, 259 mm high and 78 mm wide, bar diameter 33 mm
- load capacity up to 100 kg
- wall plate and extension arm made of high-quality synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey)
- top grab bar made of metal, in stainless steel look
- for mounting with corrosion-free and tested HEWI fixing material for different wall constructions (to be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of delivery
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
- meets the requirements of DIN 18040, ÖNORM B1600/1601 and SIA 500
- with a horizontal, round handle level
- for holding, supporting and raising the patient
- can be folded upwards and folded downwards with braking
- permanently smooth-running, low-maintenance joint, preset in the factory
- 850 mm projection, 259 mm high and 78 mm wide, bar diameter 33 mm
- load capacity up to 100 kg
- wall plate and extension arm made of high-quality synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey)
- top grab bar made of metal, in stainless steel look
- for mounting with corrosion-free and tested HEWI fixing material for different wall constructions (to be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of delivery
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
- meets the requirements of DIN 18040, ÖNORM B1600/1601 and SIA 500
Design awards
Awarded by
Downloads
| 2D drawing | DXF | |
| Drilling pattern | JPG | |
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions |
Documents
| Colour Chart | Link | |
| Installation video 1 | Link |
