Hinged support rail Basic

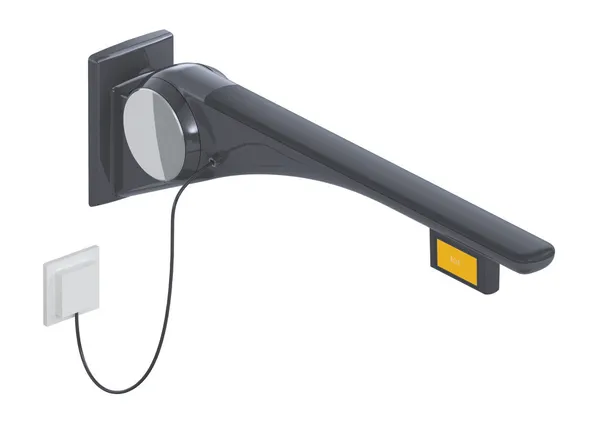

Swing-up grab bar Basic with E left-hand version function button of the LifeSystem range
- Stable, single-arm swing-up grab bar
- Non-slip and ergonomic grip pad
- For gripping, support and pulling up
- High-quality plastic surface and scratch-resistant powder coating
- Maximum product stiffness increases stability and gives the user a secure grip feeling
- With function button (model E)
- Left-hand version (seen from user's view)
- Yellow button (bell symbol) for triggering a freely definable function (the function button does not meet the requirements for an emergency call according to DIN VDE 0834-1) (convex tactile push point)
- Cable with bare wire ends for wall connection
- Includes white cover for flush-mounted box
- Control voltage max. 30 V = SELV, PELV, switching current up to max. 2 A
- Suitable for all standard concealed cisterns with electrical control
- Easy fold-up and fold-down due to spring-loaded hinges
- Low-maintenance, permanently smooth and easy moving joint, preset in the factory
- A defined stop prevents the swing-up grab bar from hitting the wall
- Projection 700 mm, 120 mm wide, wall plate 202 mm high
- Grip pad 58 mm wide
- Aluminium cantilever arm, powder coated in the HEWI colours signal white, glossy with grip pad made of synthetic material in SD (signal white, matt) and GU (anthracite, matt) or anthracite cantilever arm, glossy with grip pad in TB (signal white, matt) and DR (anthracite, matt), with high-gloss chrome design elements
- Toilet roll holder 802.50.01160 and backrest 802.51.90.. can be retrofitted
- Weight capacity up to 100 kg
- Easy mounting by separate installation of the mounting plate made of stainless steel, satin finished
- concealed, non-corrosive and tested HEWI fixing material for different wall systems (must be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of supply
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
