Article number 900.50.162XA}

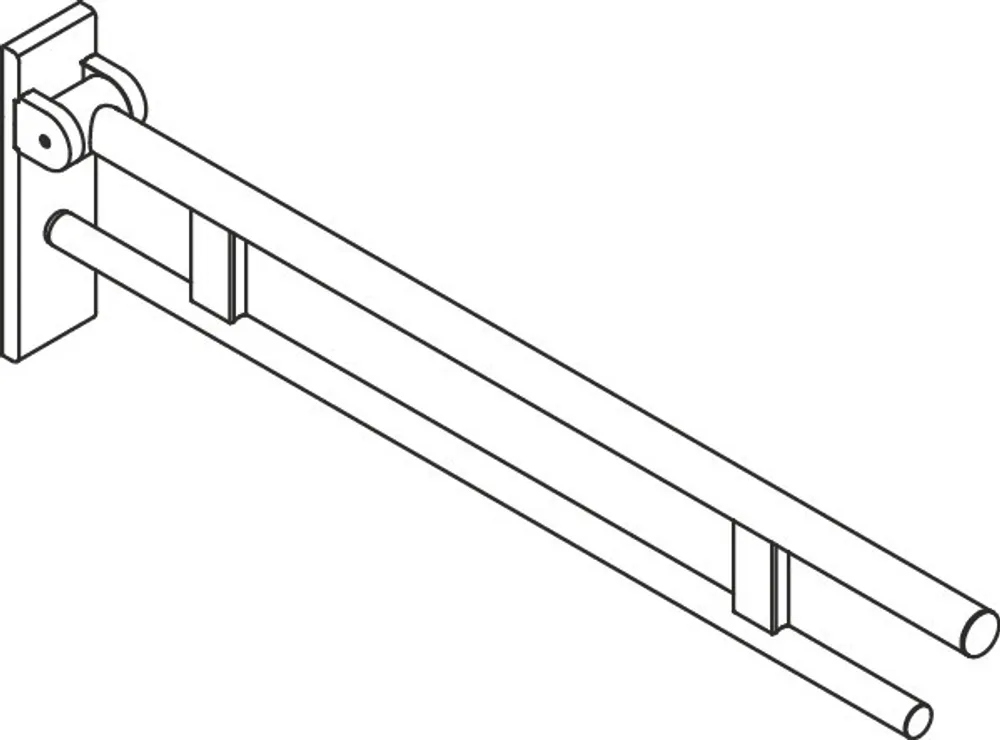

HEWI Hinged support rail Duo, design (B), System 900
two parallel, round bars one on top of each other, stainless steel, satin, projection 900 mm, 256 mm high and 75 mm wide, dia. of upper rail 33.7 mm, dia. of bottom rail 25 mm, weight capacity up to 100 kg, wall plate made of polyamide w/integrated steel core and satin stainless steel cover, install. w/non-corrosive, tested HEWI fixing material (to be ordered separately). produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices.Fulfils ÖNORM B1600/1601 requirements.
Show more
two parallel, round bars one on top of each other, stainless steel, satin, projection 900 mm, 256 mm high and 75 mm wide, dia. of upper rail 33.7 mm, dia. of bottom rail 25 mm, weight capacity up to 100 kg, wall plate made of polyamide w/integrated steel core and satin stainless steel cover, install. w/non-corrosive, tested HEWI fixing material (to be ordered separately). produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices.Fulfils ÖNORM B1600/1601 requirements.
EAN
4014885523079
Function
hinged
Version
suitable for both sides
Size
900 mm
Wall plate
Design B
Variant
without additional function
Assembly
fixed
Material
Stainless steel
Hinged support rail Duo, design (B), System 900
- two parallel, round gripping levels arranged on top of each other
- can be folded upwards and folded downwards with braked movement
- projection 900 mm, 256 mm high and 75 mm wide, top rail diameter 33.7 mm, bottom rail diameter 25 mm
- weight capacity up to 100 kg
- made of stainless steel, satin
- wall plate made of polyamide with integrated steel core and satin stainless steel cover
- for mounting with non-corrosive and tested HEWI fixing materials for different wall systems (to be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of supply
- floor supports 900.50.020XA and 900.50.021XA for retrofitting
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
- fulfils the ÖNORM B1600/1601 requirements
- two parallel, round gripping levels arranged on top of each other
- can be folded upwards and folded downwards with braked movement
- projection 900 mm, 256 mm high and 75 mm wide, top rail diameter 33.7 mm, bottom rail diameter 25 mm
- weight capacity up to 100 kg
- made of stainless steel, satin
- wall plate made of polyamide with integrated steel core and satin stainless steel cover
- for mounting with non-corrosive and tested HEWI fixing materials for different wall systems (to be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of supply
- floor supports 900.50.020XA and 900.50.021XA for retrofitting
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
- fulfils the ÖNORM B1600/1601 requirements
Design awards
Awarded by
Downloads

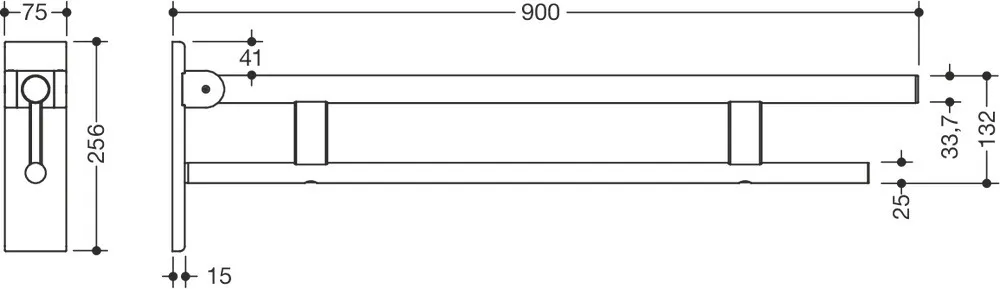

| 2D drawing | DXF | |
| 3DF | DXF | |
| Ordering aid HEWI_Ordering-aid_Height-adjustable-plate.pdf | ||
| Drilling pattern | JPG | |
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions |
Documents
| BIM | Link | |
| Colour Chart | Link | |
| Installation video 1 | Link |
