Hinged support rail Duo

Article number 900.50.166XA

HEWI Duo folding support handle, Design B
Stainless steel, matt polished, Projection 900 mm, with toilet roll holder, tested up to 150 kg when used with HEWI fixing material, Recommended maximum weight of the user: 150 kg, is produced in accordance with CE and UKCA Regulation (EU) 2017/745 on medical devices, fulfils the ÖNORM B1600/1601 requirements.

Downloads and documents

Product data sheet

Add to the comparison list comparison list

EAN

4014885523116

article group

Hinged support rail

Function

hinged

Version

suitable for both sides

Size

900 mm

Wall plate

Design B

Variant

Toilet paper holder

Assembly

fixed

Material

Stainless steel

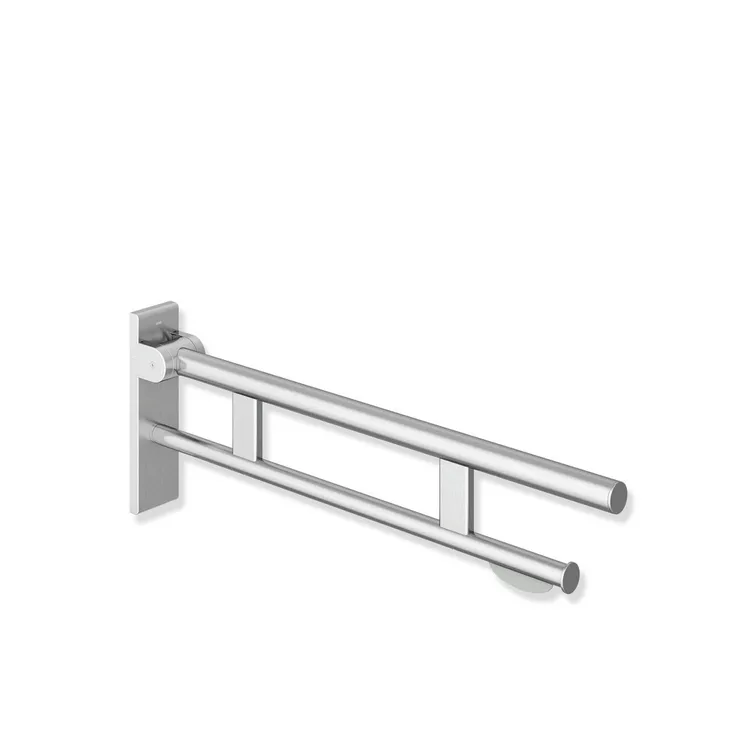

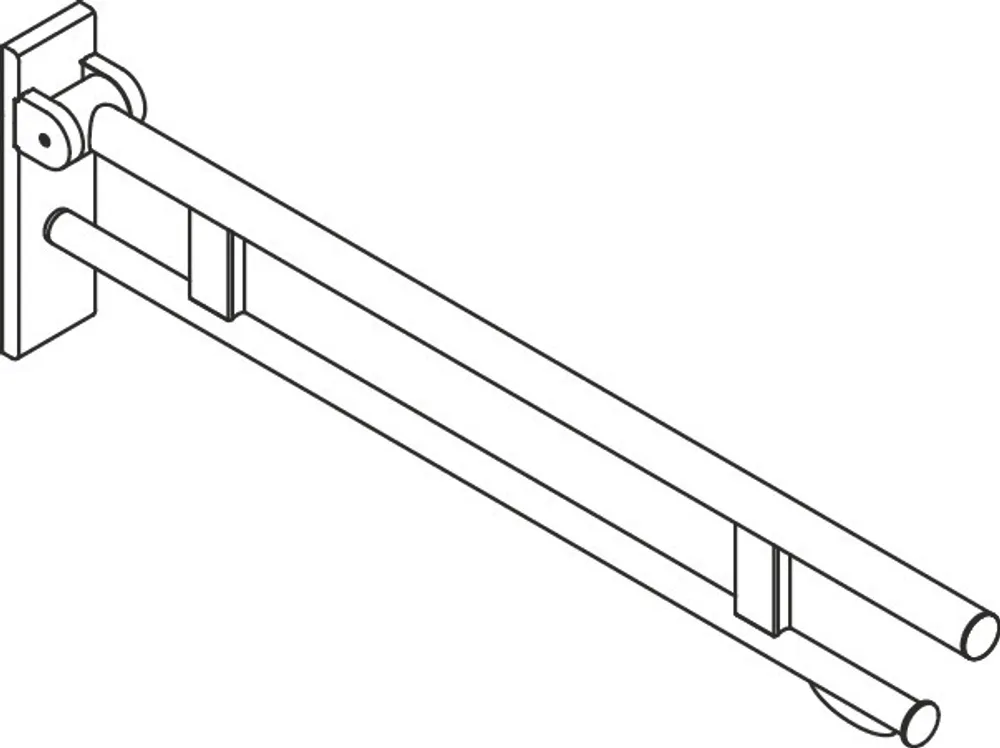

hinged support rail Duo, Design (B), System 900
- Two parallel rails, round gripping levels arranged on top of each other
- with toilet roll holder
- Can be folded upwards and folded downwards with braked movement

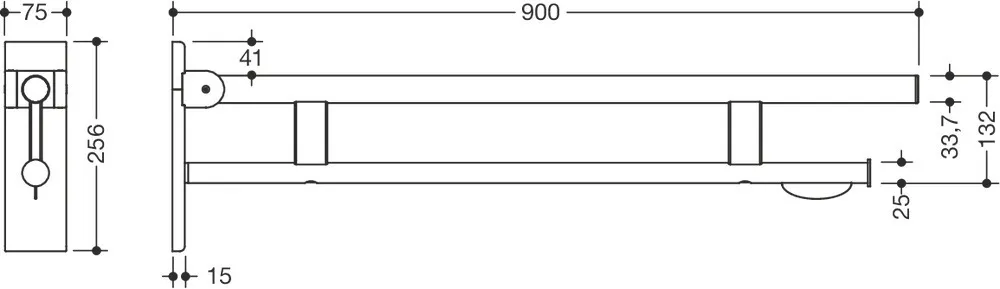

- Projection 900 mm , Height 256 mm and width 75 mm , diameter of upper rail 33.7 mm, diameter of bottom rail 25 mm
- Made from high-quality stainless steel, matt polished
- Wall plate made of polyamide with integrated steel core and cover made of matt polished stainless steel
- for mounting with non-corrosive and tested HEWI fixing material for different wall systems (to be ordered separately).
Sealing tape for sealing the fixing points is included in the delivery
- tested up to 150 kg when used with HEWI fixing material
- Recommended maximum weight of the user: 150 kg
- Floor supports 900.50.020XA and 900.50.021XA can be retrofitted
- is produced in accordance with CE and UKCA Regulation (EU) 2017/745 on medical devices
- fulfils the requirements of ÖNORM B1600/1601
