Article number 900.50.16860 DX}
HEWI Duo hinged supp. rail, design (B), System 900
two parallel, round bars one on top of each other, stainl. steel, powder-coated in HEWI colours DX (matt white), DC (matt black) and SC (matt dark grey pearl mica), w/toilet roll holder and flushing mech., left-hand version, suitable for radio-controlled WC flushing systems made by Geberit, Friatec, Mepa, Sanit, Viega, TECE and Grohe, blue button (wave symbol) f. trigg. toilet flushing mech., proj. 750 mm, 256 mm high and 75 mm wide, dia. upper rail 33.7 mm, dia. bottom rail 25 mm, weight capacity up to 100 kg, wall plate in polyamide w/intergr. steel core, stainl. steel cover, powder-coated in HEWI colours DX (matt white), DC (matt black) and SC (matt dark grey pearl mica), install. w/non-corrosive, tested HEWI fix.-mat. (to be ordered separately). produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices.Fulfils requirements applicable in Belgium (CWATUPE, WVG Vlaanderen) regarding proj. of hinged supp. rail at toilet.
Show more
two parallel, round bars one on top of each other, stainl. steel, powder-coated in HEWI colours DX (matt white), DC (matt black) and SC (matt dark grey pearl mica), w/toilet roll holder and flushing mech., left-hand version, suitable for radio-controlled WC flushing systems made by Geberit, Friatec, Mepa, Sanit, Viega, TECE and Grohe, blue button (wave symbol) f. trigg. toilet flushing mech., proj. 750 mm, 256 mm high and 75 mm wide, dia. upper rail 33.7 mm, dia. bottom rail 25 mm, weight capacity up to 100 kg, wall plate in polyamide w/intergr. steel core, stainl. steel cover, powder-coated in HEWI colours DX (matt white), DC (matt black) and SC (matt dark grey pearl mica), install. w/non-corrosive, tested HEWI fix.-mat. (to be ordered separately). produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices.Fulfils requirements applicable in Belgium (CWATUPE, WVG Vlaanderen) regarding proj. of hinged supp. rail at toilet.
Current color: DX (matt white)
EAN
4014885570127
Function
hinged
Version
left (user perspective)
Size
750 mm
Colour
Wall plate
Design B
Variant
Toilet roll holder / WC flushing mechanism (radio-controlled)
Assembly
fixed
Material
Powder-coated
This article is also available in special colours.

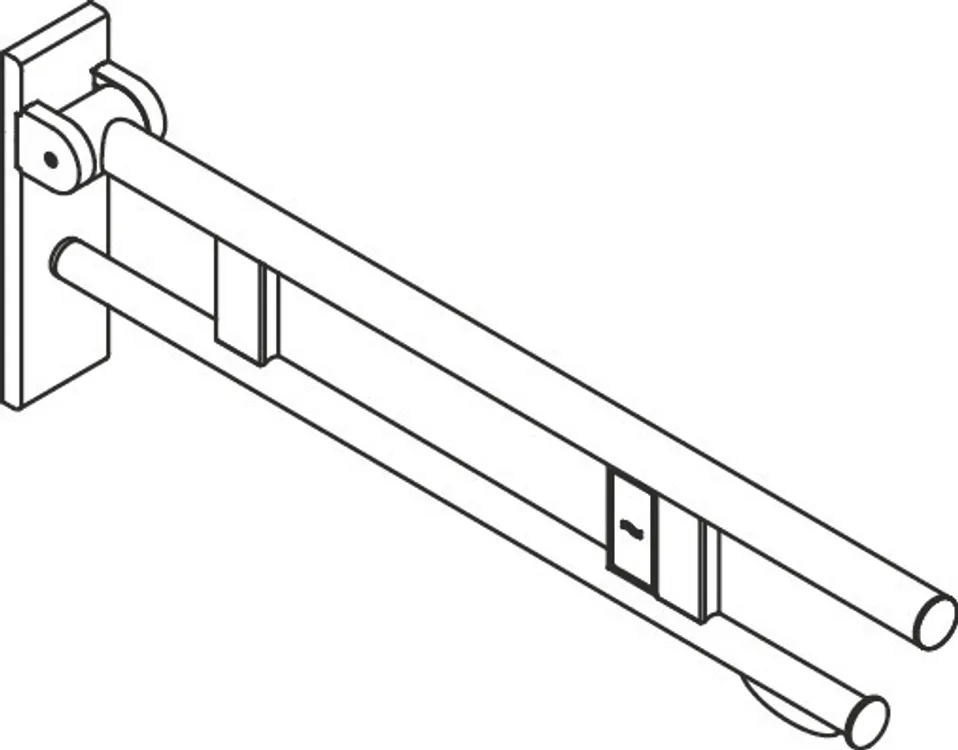

Hinged support rail Duo, design (B), System 900
- two parallel, round gripping levels arranged on top of each other
- with toilet roll holder and radio-controlled flushing mechanism
- left-hand version
- can be folded upwards and folded downwards with braked movement
- blue button (wave symbol) for triggering the toilet flushing mechanism
- transmission frequency 868.4 MHz
- suitable for radio-controlled toilet flushing systems made by Geberit, Friatec, Mepa, Sanit, Viega, TECE and Grohe

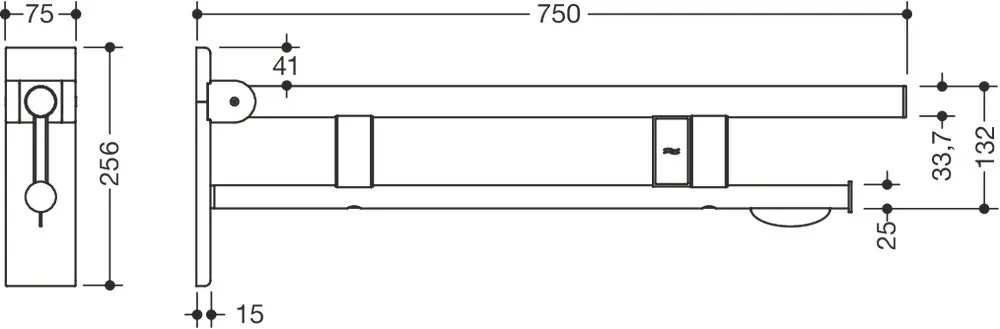

- projection 750 mm, 256 mm high and 75 mm wide, top rail diameter 33.7 mm, bottom rail diameter 25 mm
- weight capacity up to 100 kg
- made of stainless steel, powder-coated in HEWI colours DX (matt white), DC (matt black) and SC (matt dark grey pearl mica)
- wall plate made of polyamide with integrated steel core and cover made of stainless steel, powder-coated in HEWI colours DX (matt white), DC (matt black) and SC (matt dark grey pearl mica)
- for mounting with non-corrosive and tested HEWI fixing materials for different wall systems (to be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of supply
- floor supports 900.50.02060 and 900.50.02160 for retrofitting
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
- fulfils the requirements applicable in Belgium (CWATUPE, WVG Vlaanderen) regarding the projection of the hinged support rail at the toilet
- two parallel, round gripping levels arranged on top of each other
- with toilet roll holder and radio-controlled flushing mechanism
- left-hand version
- can be folded upwards and folded downwards with braked movement
- blue button (wave symbol) for triggering the toilet flushing mechanism
- transmission frequency 868.4 MHz
- suitable for radio-controlled toilet flushing systems made by Geberit, Friatec, Mepa, Sanit, Viega, TECE and Grohe
- projection 750 mm, 256 mm high and 75 mm wide, top rail diameter 33.7 mm, bottom rail diameter 25 mm
- weight capacity up to 100 kg
- made of stainless steel, powder-coated in HEWI colours DX (matt white), DC (matt black) and SC (matt dark grey pearl mica)
- wall plate made of polyamide with integrated steel core and cover made of stainless steel, powder-coated in HEWI colours DX (matt white), DC (matt black) and SC (matt dark grey pearl mica)
- for mounting with non-corrosive and tested HEWI fixing materials for different wall systems (to be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of supply
- floor supports 900.50.02060 and 900.50.02160 for retrofitting
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
- fulfils the requirements applicable in Belgium (CWATUPE, WVG Vlaanderen) regarding the projection of the hinged support rail at the toilet
