Hinged support rail Duo

Article number 900.50.19740

HEWI Duo hinged support rail, design (B), System 900
two parallel, round bars one on top of each other, stainless steel, chrome, w/toilet roll holder and flushing mechanism/function buttons (model E), right-hand version, blue button (wave symbol) toilet flushing mechanism, red button (bell symbol) freely definable function, projection 850 mm, 256 mm high and 75 mm wide, dia. of upper rail 33.7 mm, dia. of bottom rail 25 mm, weight capacity up to 100 kg, wall plate made of polyamide w/integrated steel core and cover made of chrome stainless steel, install. w/non-corrosive, tested HEWI fixing material (to be ordered separately). produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices.Fulfils DIN 18040 requirements, ÖNORM B1600/1601 and SIA 500.
Show more
CE-Kennzeichen
EAN
4014885525158
Version
right (user perspective)
Function
hinged
Size
850 mm
Variant
Toilet roll holder / flush release / function button
Wall plate
Design B
Material
Chrome
Assembly
fixed

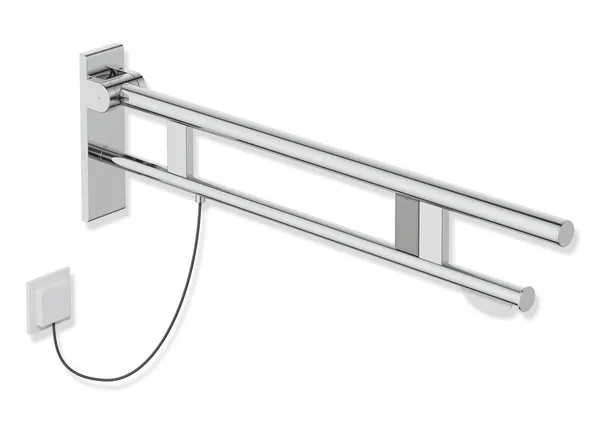

Hinged support rail Duo, design (B), System 900
- two parallel, round gripping levels arranged on top of each other
- with toilet roll holder and flushing mechanism/function buttons (model E)
- right-hand version
- can be folded upwards and folded downwards with braked movement
- blue button (wave symbol) for triggering the toilet flushing mechanism, red button (bell symbol) for triggering a freely definable function. (The function button does not fulfil the requirements for an emergency call according to DIN VDE 0834-1)
- cable with bare wire ends for wall connection
- including white cover for flush-mounted box
- control voltage max. 30 V = SELV, PELV, switching current up to max. 2 A
- suitable for all standard concealed cisterns with electrical control
- projection 850 mm, 256 mm high and 75 mm wide, top rail diameter 33.7 mm, bottom rail diameter 25 mm
- weight capacity up to 100 kg
- made of stainless steel, chrome
- wall plate made of polyamide with integrated steel core and cover made of chrome stainless steel
- for mounting with non-corrosive and tested HEWI fixing materials for different wall systems (to be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of supply
- floor supports 900.50.02040 and 900.50.02140 for retrofitting
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
- fulfils the DIN 18040, ÖNORM B1600/1601 and SIA 500 requirements
