Article number 900.50.10060 SC}

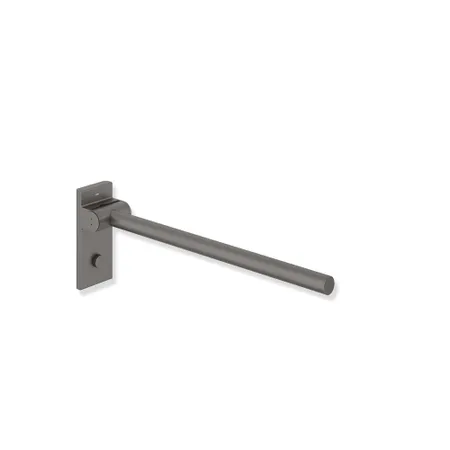

HEWI Mono hinged support rail, design (A), System 900
w/one horizontal, round gripping level, stainless steel, powder-coated in HEWI colours DX (matt white), DC (matt black) and SC (matt dark grey pearl mica), projection 600 mm, 210 mm high and 101 mm wide, rail dia. 33.7 mm
weight capacity up to 100 kg, install. w/non-corrosive, tested HEWI fixing material (to be ordered separately). produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices.Fulfils DIN 18040 requirements.
Show more
w/one horizontal, round gripping level, stainless steel, powder-coated in HEWI colours DX (matt white), DC (matt black) and SC (matt dark grey pearl mica), projection 600 mm, 210 mm high and 101 mm wide, rail dia. 33.7 mm
weight capacity up to 100 kg, install. w/non-corrosive, tested HEWI fixing material (to be ordered separately). produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices.Fulfils DIN 18040 requirements.
Current color: SC (matt dark grey pearl mica)
EAN
4014885567417
Function
hinged
Version
suitable for both sides
Size
600 mm
Colour
Wall plate
Design A
Variant
without additional function
Assembly
fixed
Material
Powder-coated
This article is also available in special colours.
Mono hinged support rail, design (A), System 900
- with one horizontal, round gripping level
- can be folded upwards and folded downwards with braked movement
- 600 mm projection, 210 mm high and 101 mm wide, 33.7 mm rail diameter
- weight capacity up to 100 kg
- made of stainless steel, powder-coated in HEWI colours DX (matt white), DC (matt black) and SC (matt dark grey pearl mica)
- for mounting with non-corrosive and tested HEWI fixing materials for different wall systems (to be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of supply
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
- fulfils the DIN 18040 requirements
- with one horizontal, round gripping level
- can be folded upwards and folded downwards with braked movement
- 600 mm projection, 210 mm high and 101 mm wide, 33.7 mm rail diameter
- weight capacity up to 100 kg
- made of stainless steel, powder-coated in HEWI colours DX (matt white), DC (matt black) and SC (matt dark grey pearl mica)
- for mounting with non-corrosive and tested HEWI fixing materials for different wall systems (to be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of supply
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
- fulfils the DIN 18040 requirements
Design awards
Awarded by
Downloads
| 2D drawing | DXF | |
| 3DF | DXF | |
| Ordering aid HEWI_Ordering-aid_Height-adjustable-plate.pdf | ||
| Drilling pattern | JPG | |
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions |
Documents
| BIM | Link | |
| Colour Chart | Link | |
| Installation video 1 | Link |
