36" x 18" (915 mm x 457 mm)
Article number 801.22US110 99

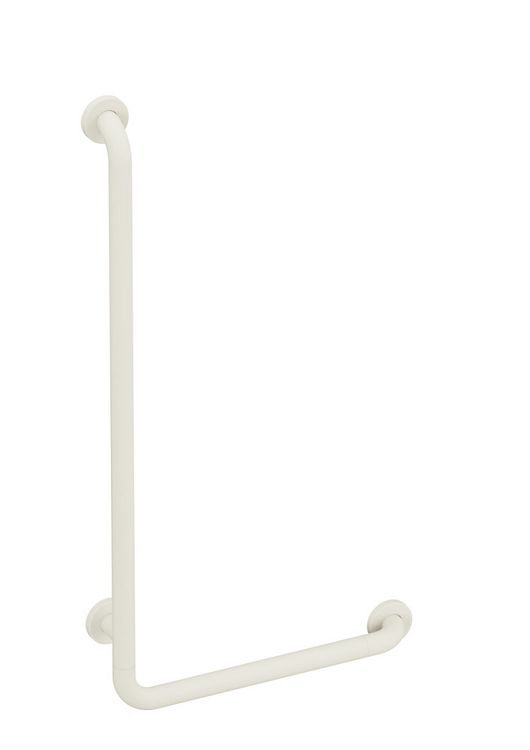

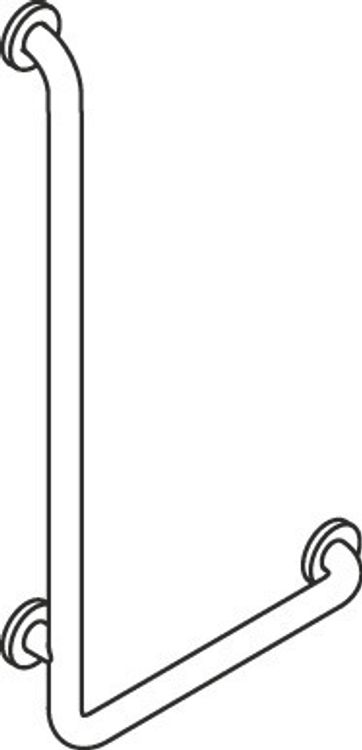

HEWI L-shaped support rail (USA) from Range 801

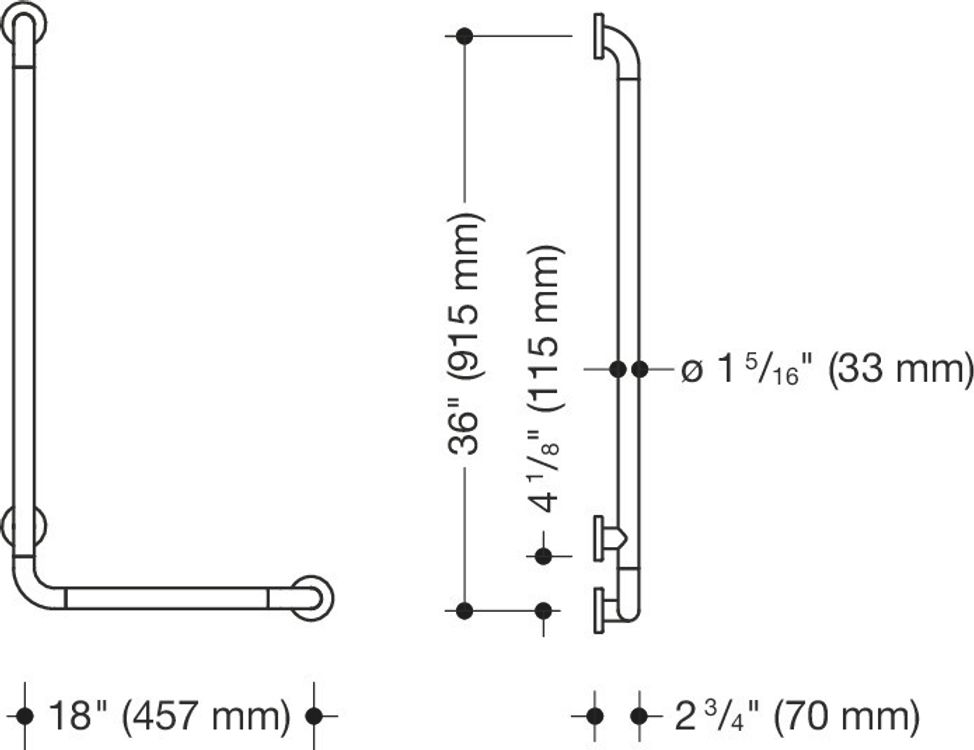

can be mounted on the right and left side, positioned horizontally and vertically, rails connected at a right angle with steel fixing roses, horizontal lengths 18 inch (457 mm), vertical length 36 inch (915 mm), 2 3/4 inch (70 mm) deep, rail diameter 1 5/16 inch (33 mm), rose diameter 2 3/4 inch (70 mm), maximum loading capacity 330 lbs (150 kg), made from high-grade synthetic material in the HEWI colors 99 (pure white), 95 (stone gray), 92 (anthracite gray), 90 (jet black), 86 (sand), 84 (umber) and 33 (ruby red), toilet paper holder upgrade kit 801.50US010 can be retrofitted, meets the requirements of 2010 ADA standards and ICC/ANSI A117.1-2017.
Show more can be mounted on the right and left side, positioned horizontally and vertically, rails connected at a right angle with steel fixing roses, horizontal lengths 18 inch (457 mm), vertical length 36 inch (915 mm), 2 3/4 inch (70 mm) deep, rail diameter 1 5/16 inch (33 mm), rose diameter 2 3/4 inch (70 mm), maximum loading capacity 330 lbs (150 kg), made from high-grade synthetic material in the HEWI colors 99 (pure white), 95 (stone gray), 92 (anthracite gray), 90 (jet black), 86 (sand), 84 (umber) and 33 (ruby red), toilet paper holder upgrade kit 801.50US010 can be retrofitted, meets the requirements of 2010 ADA standards and ICC/ANSI A117.1-2017.
Current color: 99 (pure white)
EAN
4014885554271
article group
L-shaped support rail
Diameter bar
33 mm
Version
continuous steel core/ steel fixing roses
Colour
Material
Polyamide
HÄFELE Item Number 988.72.5xx
L-shaped support rail (USA) from Range 801
- can be mounted on the right and left side
- positioned horizontally and vertically, rails connected at a right angle with steel fixing roses
- for holding onto and as a support
- with corrosion-protected steel core throughout
- wall mounting with wall-specific fixing material and roses from HEWI
- horizontal length 18 inch (457 mm), vertical length 36 inch (915 mm), 2 3/4 inch (70 mm) deep
- rail diameter 1 5/16 inch (33 mm), rose diameter 2 3/4 inch (70 mm)
- maximum loading capacity 330 lbs (150 kg)
- made from high-grade synthetic material in the HEWI colors 99 (pure white), 95 (stone gray), 92 (anthracite gray), 90 (jet black), 86 (sand), 84 (umber) and 33 (ruby red)
- toilet paper holder upgrade kit 801.50US010 can be retrofitted
- meets the requirements of 2010 ADA standards and ICC/ANSI A117.1-2017
- can be mounted on the right and left side
- positioned horizontally and vertically, rails connected at a right angle with steel fixing roses
- for holding onto and as a support
- with corrosion-protected steel core throughout
- wall mounting with wall-specific fixing material and roses from HEWI
- horizontal length 18 inch (457 mm), vertical length 36 inch (915 mm), 2 3/4 inch (70 mm) deep
- rail diameter 1 5/16 inch (33 mm), rose diameter 2 3/4 inch (70 mm)
- maximum loading capacity 330 lbs (150 kg)
- made from high-grade synthetic material in the HEWI colors 99 (pure white), 95 (stone gray), 92 (anthracite gray), 90 (jet black), 86 (sand), 84 (umber) and 33 (ruby red)
- toilet paper holder upgrade kit 801.50US010 can be retrofitted
- meets the requirements of 2010 ADA standards and ICC/ANSI A117.1-2017
