L-shaped support rail

with steel core and fixing roses made of steel
Article number 801.22.200 55

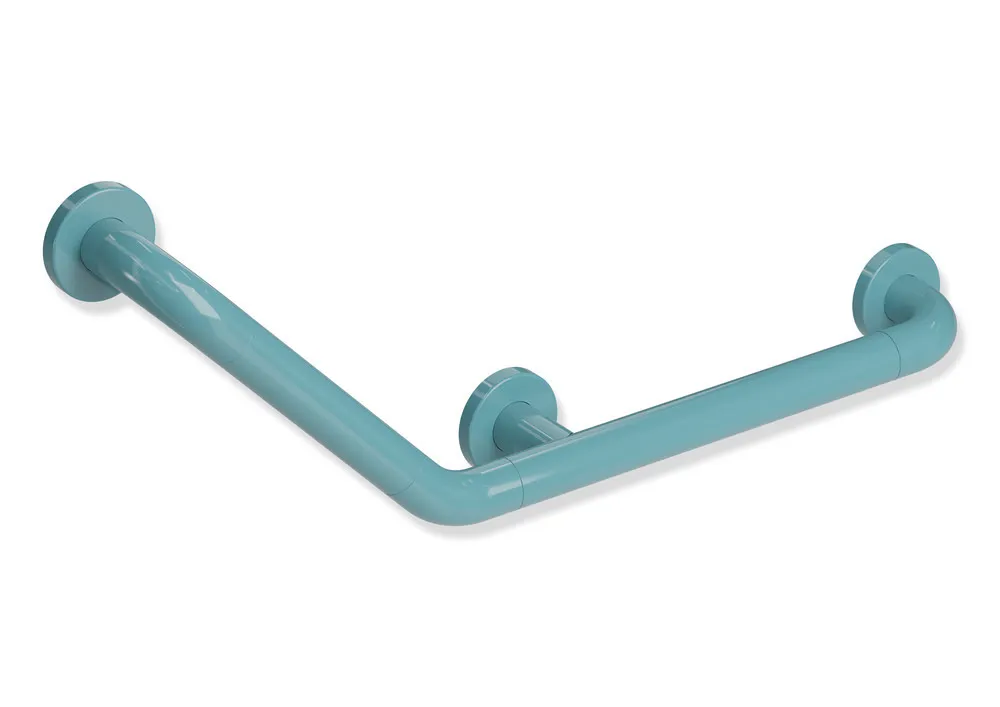

HEWI L-shaped support rail
Polyamide, high gloss, centre-to-centre 620 mm and 200 mm, Angle 135°, 200 mm high, Diameter 33 mm, Can be mounted on the left and right, tested up to 200 kg when used with HEWI fixing material, Recommended maximum weight of the user: 150 kg.

Current color: 55 (aqua blue)

Downloads and documents

Product data sheet

Add to the comparison list comparison list

EAN

4014885427889

Version

continuous steel core/ steel fixing roses

Size

325 x 295 x 200 mm

Colour

55aqua blue

Angle

135° L-shaped support rail

Material

Polyamide

Range 801 L-shaped support rail
- Rods connected at a shallow angle with steel fixing rosettes
- Used for holding and supporting
- With continuous, corrosion-resistant steel core
- Centre-to-centre 620 mm and 200 mm, Angle 135°, 200 mm high
- Depth 89 mm , Clearance to the wall 56 mm , Rod diameter 33 mm, Rosette diameter 70 mm
- Increased stability thanks to 3 mounting supports
- Wall mounting with wall-specific mounting material and HEWI rosettes
- Can be mounted on the right and left side
- tested up to 200 kg when used with HEWI fixing material
- Recommended maximum weight of the user: 150 kg
- made of high-gloss polyamide according to HEWI colour chart
- Toilet paper holder upgrade kit 801.50.011 and toilet flush release upgrade kit (radio) 801.50.060 can be retrofitted
