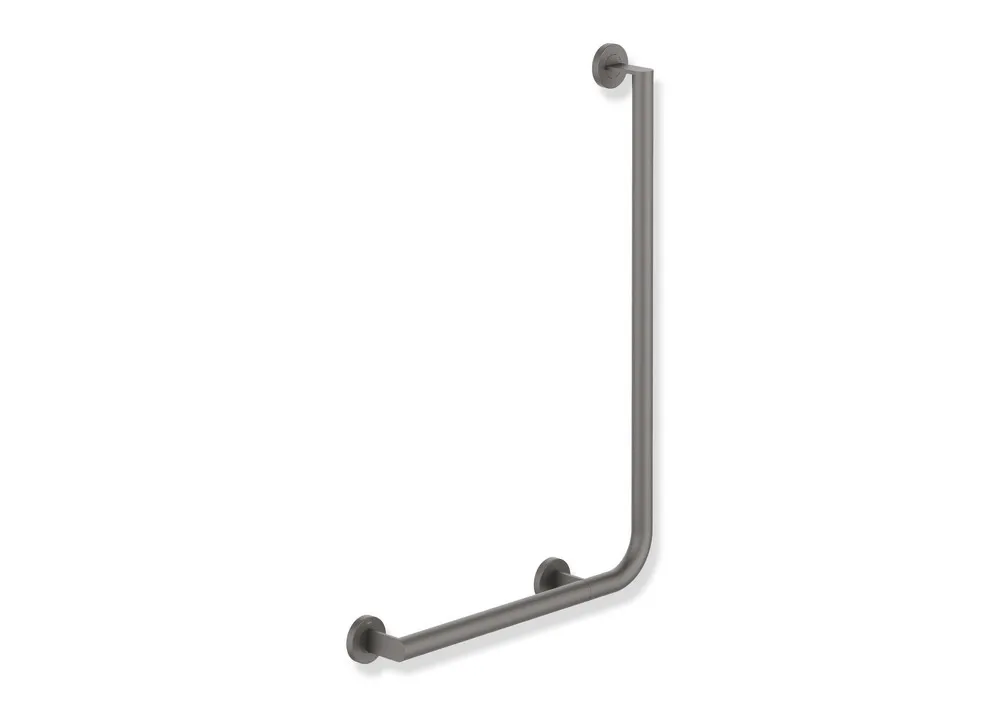

L-shaped support rail

version left
Article number 900.22.10660 SC

HEWI L-shaped support rail
Stainless steel, Powder-coated, Horizontal length 500 mm, vertical length 750 mm, diameter 32 mm, left-hand version, tested up to 200 kg when used with HEWI fixing material, Recommended maximum weight of the user: 150 kg, fulfils the ÖNORM B1600/1601 requirements.

Current color: SC (matt dark grey pearl mica)

Downloads and documents

Product data sheet

Add to the comparison list comparison list

EAN

4014885556435

article group

L-shaped support rail

Diameter bar

32 mm

Version

left (user perspective)

Size

750 x 500 mm

Colour

SCSC (matt dark grey pearl mica)

Angle

90° L-shaped support rail

Material

Powder-coated

This article is also available in special colours.

L-shaped support rail, System 900
- Rails arranged vertically and horizontally, joined at right-angles with mounting roses
- left-hand version
- horizontal length 500 mm, vertical length 750 mm, 88 mm depth
- rail diameter 32 mm, Tube thickness 2 mm, Rosette diameter 70 mm
- Made from high-quality stainless steel, powder-coated in HEWI colours DX (deep matt white), DC (matt black) and SC (matt dark grey pearl mica)
- Including non-corrosive and tested HEWI fixing material for wall mounting and sealing tape to seal the drilling points
- tested up to 200 kg when used with HEWI fixing material
- Recommended maximum weight of the user: 150 kg
- fulfils the requirements of ÖNORM B1600/1601
