L-shaped support rail

version left
Article number 900.22.106XA

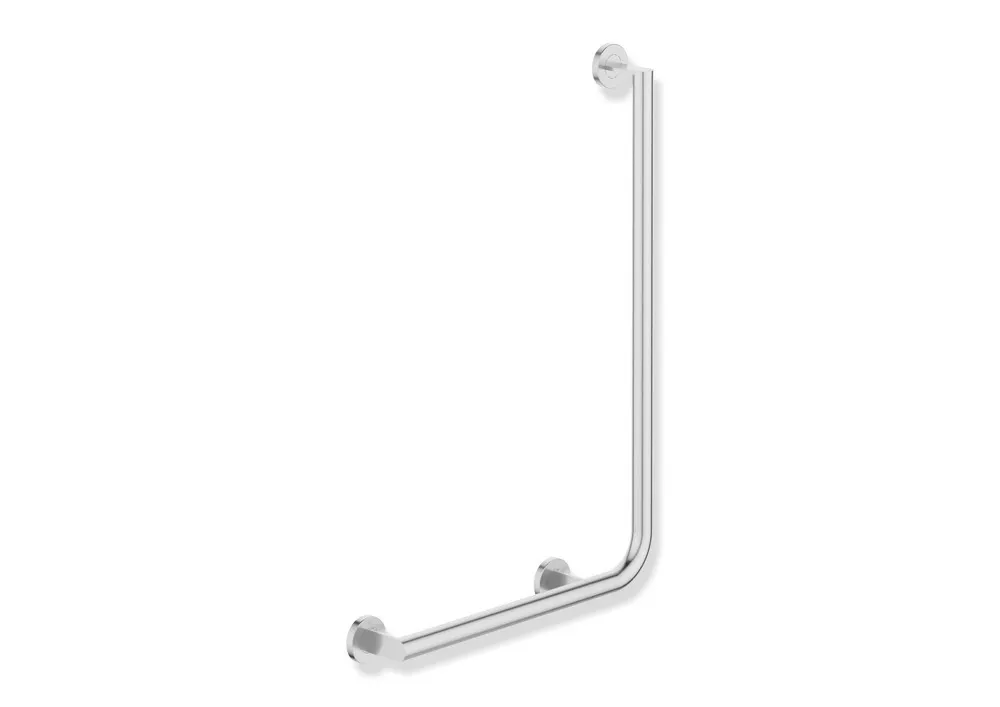

HEWI L-shaped support rail
Stainless steel, matt polished, Horizontal length 500 mm, vertical length 750 mm, diameter 32 mm, left-hand version, tested up to 200 kg when used with HEWI fixing material, Recommended maximum weight of the user: 150 kg, fulfils the ÖNORM B1600/1601 requirements.

Declaration of consent for use

I have read the conditions for using the media download and hereby accept them

In what size would you like to receive the images?

Gallery

600 x 450 px

460 x 460 px

1000 x 1000 px

Original

Original size

How would you like to receive the images?

Download By email

Downloads and documents

Product data sheet

Add to the comparison list comparison list

EAN

4014885534273

Diameter bar

32 mm

Version

left (user perspective)

Size

750 x 500 mm

Angle

90° L-shaped support rail

Material

Stainless steel

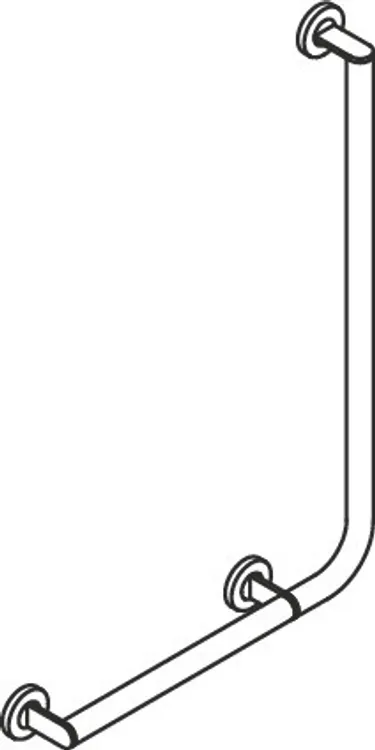

L-shaped support rail, System 900
- Rails arranged vertically and horizontally, joined at right-angles with mounting roses
- left-hand version

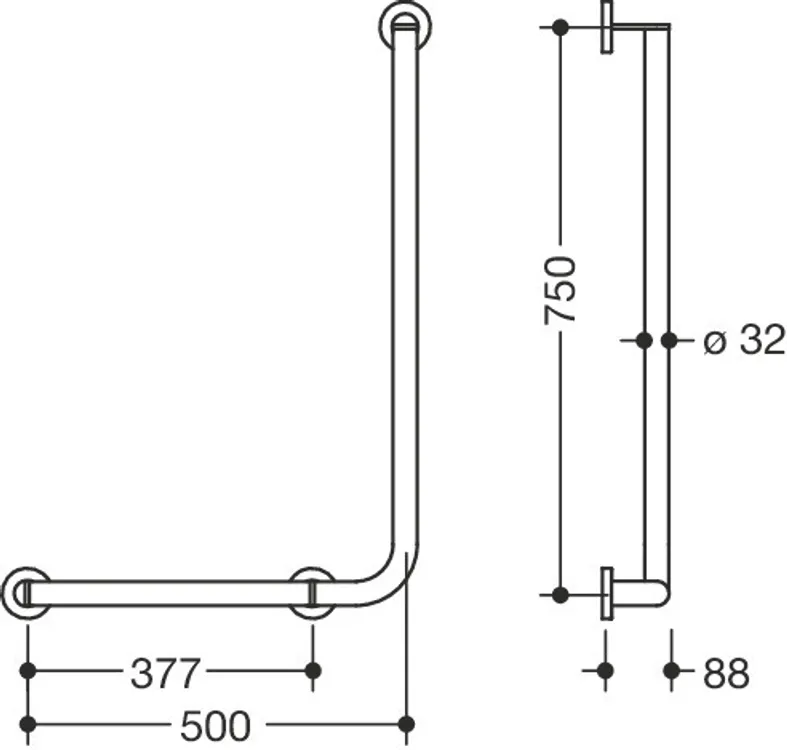

- horizontal length 500 mm, vertical length 750 mm, 88 mm depth
- rail diameter 32 mm, Tube thickness 2 mm, Rosette diameter 70 mm
- Made from high-quality stainless steel, matt polished
- including corrosion-free and tested HEWI fixing material for wall mounting and sealing tape to seal the drilling points
- tested up to 200 kg when used with HEWI fixing material
- Recommended maximum weight of the user: 150 kg
- fulfils the requirements of ÖNORM B1600/1601
