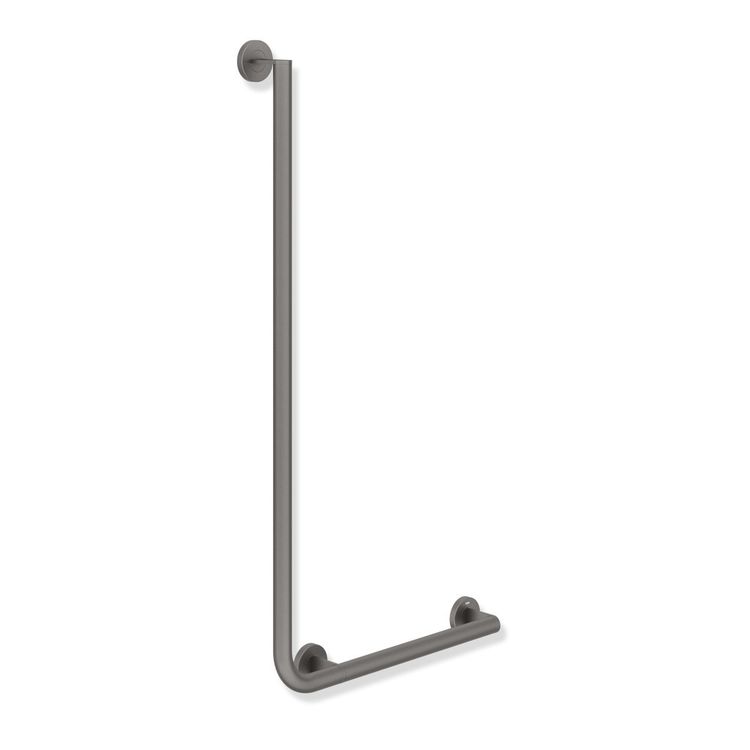

L-shaped support rail

version right
Article number 900.22.13460 SC

HEWI L-shaped support rail
Stainless steel, Powder-coated, Horizontal length 500 mm, vertical length 1000 mm, diameter 30 mm, right-hand version, tested up to 200 kg when used with HEWI fixing material, Recommended maximum weight of the user: 150 kg, fulfils the SIA 500 requirements.

Current color: SC (matt dark grey pearl mica)

Declaration of consent for use

I have read the conditions for using the media download and hereby accept them

In what size would you like to receive the images?

Gallery

600 x 450 px

460 x 460 px

1000 x 1000 px

Original

Original size

How would you like to receive the images?

Download By email

Downloads and documents

Product data sheet

Add to the comparison list comparison list

EAN

4014885556718

Diameter bar

30 mm

Version

right (user perspective)

Size

1000 x 500 mm

Colour

SCSC (matt dark grey pearl mica)

Angle

90° L-shaped support rail

Material

Powder-coated

This article is also available in special colours.

L-shaped support rail, System 900
- Rails arranged vertically and horizontally, joined at right-angles with mounting roses
- Version right
- horizontal length 500 mm, vertical length 1000 mm, 87 mm depth
- rail diameter 30 mm, Tube thickness 2 mm, Rosette diameter 70 mm
- Made from high-quality stainless steel, powder-coated in HEWI colours DX (deep matt white), DC (matt black) and SC (matt dark grey pearl mica)
- Including non-corrosive and tested HEWI fixing material for wall mounting and sealing tape to seal the drilling points
- tested up to 200 kg when used with HEWI fixing material
- Recommended maximum weight of the user: 150 kg
- Fulfils the SIA 500 requirements
