L-shaped support rail

version left
Article number 900.22.14640

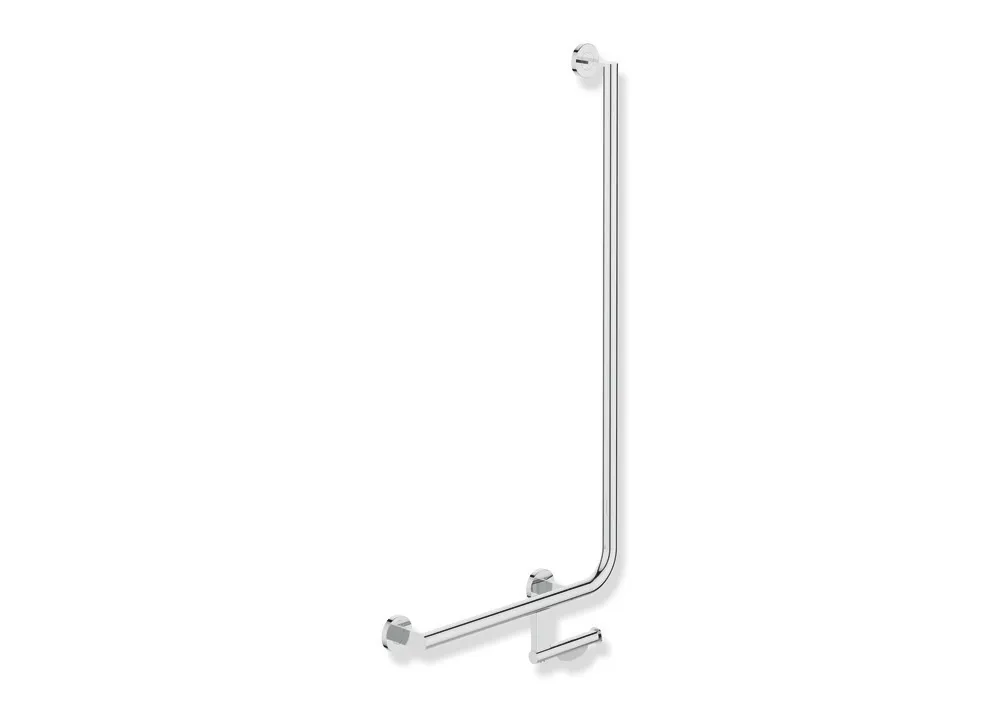

HEWI L-shaped support rail
Stainless steel, chrome-plated, Horizontal length 500 mm, vertical length 1000 mm, diameter 30 mm, left-hand version, tested up to 200 kg when used with HEWI fixing material, Recommended maximum weight of the user: 150 kg, fulfils the SIA 500 requirements.

Downloads and documents

Product data sheet

Add to the comparison list comparison list

EAN

4014885559092

article group

L-shaped support rail

Diameter bar

30 mm

Version

left with toilet roll holder (user persp.)

Size

1000 x 500 mm

Angle

90° L-shaped support rail

Material

Chrome

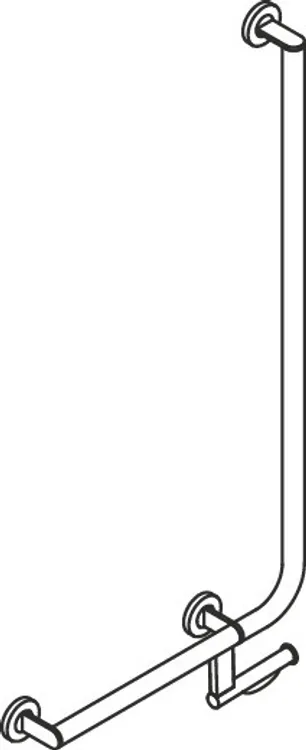

Angled handle with toilet roll holder, System 900
- Rails arranged vertically and horizontally, joined at right-angles with mounting roses
- with toilet roll holder
- left-hand version

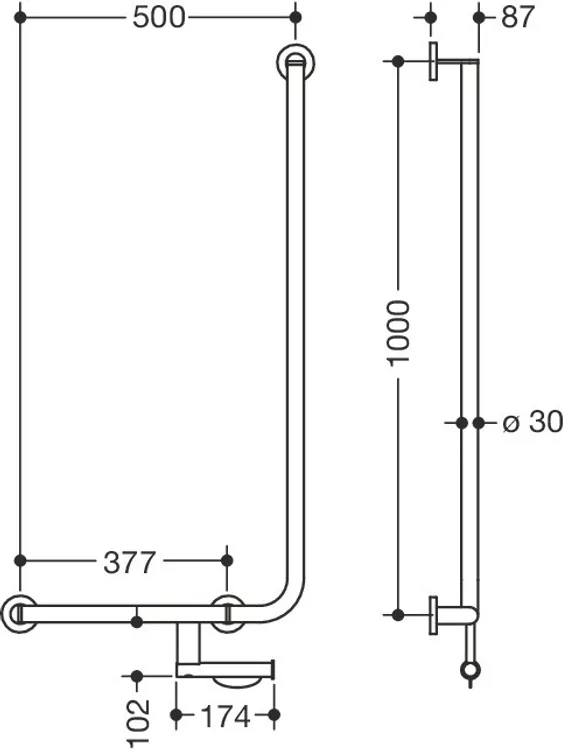

- horizontal length 500 mm, vertical length 1000 mm, 87 mm depth
- rail diameter 30 mm, Tube thickness 2 mm, Rosette diameter 70 mm
- Made from high-quality stainless steel, chrome-plated
- including corrosion-free and tested HEWI fixing material for wall mounting and sealing tape to seal the drilling points
- tested up to 200 kg when used with HEWI fixing material
- Recommended maximum weight of the user: 150 kg
- Fulfils the SIA 500 requirements
