{version left
Article number 900.22.30140}

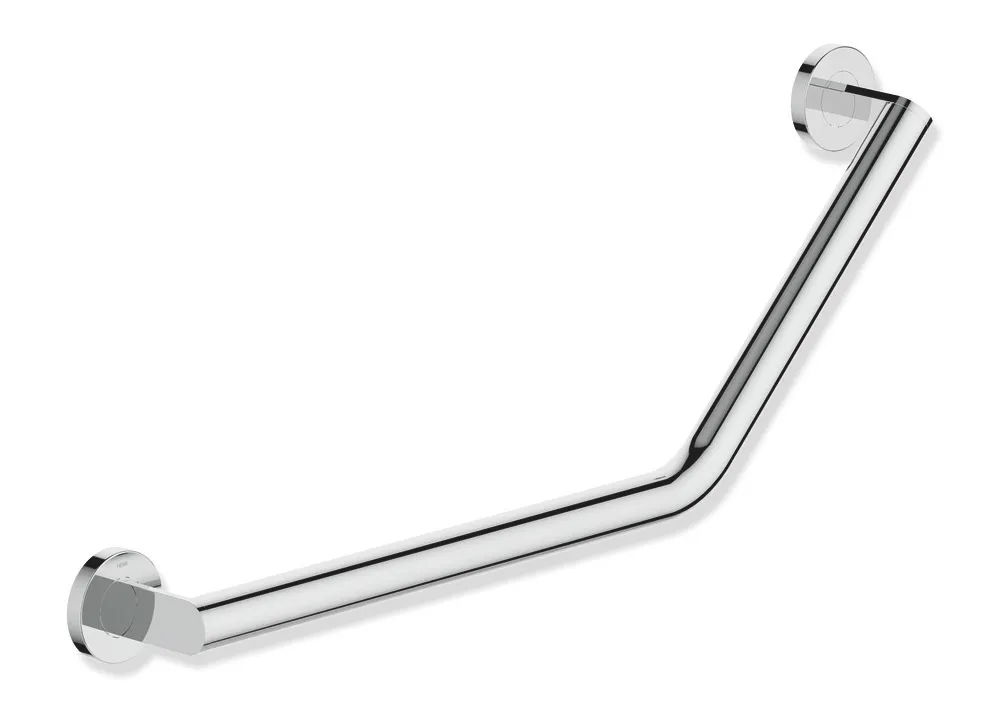

HEWI L-shaped support rail, System 900
made of high-quality stainless steel, chrome, rails joined at a flat angle with mounting roses, left-hand version, centre-to-centre 620 mm and 283 mm, angle 135°, 88 mm deep, rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm, including non-corrosive HEWI fixing material.
Show more
made of high-quality stainless steel, chrome, rails joined at a flat angle with mounting roses, left-hand version, centre-to-centre 620 mm and 283 mm, angle 135°, 88 mm deep, rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm, including non-corrosive HEWI fixing material.
EAN
4014885534396
Diameter bar
32 mm
Version
left (user perspective)
Size
600 x 300 mm
Angle
135° L-shaped support rail
Material
Chrome
L-shaped support rail, System 900
- rails joined at a flat angle with mounting roses
- left-hand version
- fixing spacings 620 mm and 283 mm, 135° angle, 88 mm deep
- rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm
- made of high-quality stainless steel, chrome
- including non-corrosive and tested HEWI fixing material for wall mounting and sealing tape for sealing the drilling points
- rails joined at a flat angle with mounting roses
- left-hand version
- fixing spacings 620 mm and 283 mm, 135° angle, 88 mm deep
- rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm
- made of high-quality stainless steel, chrome
- including non-corrosive and tested HEWI fixing material for wall mounting and sealing tape for sealing the drilling points
Design awards
Awarded by
Downloads
| 2D drawing | DXF | |
| 3DF | DXF | |
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions |
Documents
| BIM | Link | |
| Colour Chart | Link | |
| Installation video 1 | Link |
