A1 = 600 mm, W1 = 300 mm
Article number 950.22.10090 99

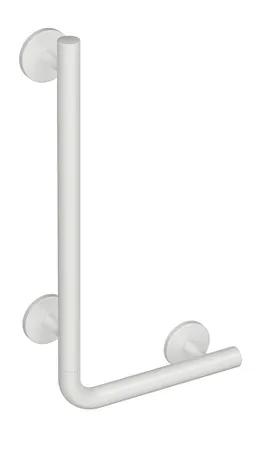

HEWI L-shaped support rail
made of high-quality polyamide in HEWI colour 98 (signal white) or 99 (pure white), Horizontal length 300 mm, vertical length 600 mm, diameter 33 mm, Can be mounted on the left and right, tested up to 200 kg when used with HEWI fixing material, Recommended maximum weight of the user: 150 kg.
Show more made of high-quality polyamide in HEWI colour 98 (signal white) or 99 (pure white), Horizontal length 300 mm, vertical length 600 mm, diameter 33 mm, Can be mounted on the left and right, tested up to 200 kg when used with HEWI fixing material, Recommended maximum weight of the user: 150 kg.
Current color: 99 (pure white)
EAN
4014885410263
article group
L-shaped support rail
Version
continuous steel core/ steel fixing roses
Size
600 x 300 mm
Colour
Angle
90° L-shaped support rail
Material
Polyamide
L-shaped support rail System 800 K
- Rails arranged vertically and horizontally, rods connected at right angles
- Used for holding and supporting
- made of high-quality polyamide in HEWI colour 98 (signal white) or 99 (pure white)
- With continuous, corrosion-resistant steel core
- horizontal length 300 mm, vertical length 600 mm, 90 mm depth, Rod diameter 33 mm
- Wall connection with filigree supports straight to the wall (diameter 18 mm) and flat rosettes
- Rosette diameter 80 mm, cap height 13 mm
- Simple installation thanks to individually mountable fastening plates made of high-quality stainless steel for attaching the angled handle
- Can be mounted on the right and left side
- tested up to 200 kg when used with HEWI fixing material
- Recommended maximum weight of the user: 150 kg
- including corrosion-free HEWI fixing material
- Rails arranged vertically and horizontally, rods connected at right angles
- Used for holding and supporting
- made of high-quality polyamide in HEWI colour 98 (signal white) or 99 (pure white)
- With continuous, corrosion-resistant steel core
- horizontal length 300 mm, vertical length 600 mm, 90 mm depth, Rod diameter 33 mm
- Wall connection with filigree supports straight to the wall (diameter 18 mm) and flat rosettes
- Rosette diameter 80 mm, cap height 13 mm
- Simple installation thanks to individually mountable fastening plates made of high-quality stainless steel for attaching the angled handle
- Can be mounted on the right and left side
- tested up to 200 kg when used with HEWI fixing material
- Recommended maximum weight of the user: 150 kg
- including corrosion-free HEWI fixing material
Downloads
| 2D drawing | DXF | |
| 3DF | DXF | |
| 3DV | DXF | |
| Product data sheet | ||
| Installation instructions |
